提交工作

控制台

在瀏覽器中開啟 Cloud de Confiance 控制台，然後前往 Managed Service for Apache Spark「Submit a job」(提交工作) 頁面。

Spark 工作範例

如要提交範例 Spark 工作，請依照下列說明填寫「Submit a job」(提交工作) 頁面中的欄位：

1. 從叢集清單選取您的「Cluster」(叢集) 名稱。
2. 將「Job type」(工作類型) 設為 Spark。
3. 將「Main class or jar」(主要類別或 jar) 設為 org.apache.spark.examples.SparkPi。
4. 將「Arguments」(引數) 設為單一引數 1000。
5. 在「Jar files」(Jar 檔案) (或 API jarFileUris 欄位) 中加入 file:///usr/lib/spark/examples/jars/spark-examples.jar：
   1. file:/// 表示 Hadoop LocalFileSystem 配置。Managed Service for Apache Spark 會在建立叢集時，將 /usr/lib/spark/examples/jars/spark-examples.jar 安裝在叢集的主要節點上。這個路徑僅用於 Managed Service for Apache Spark 提供的預先安裝範例。請勿將自訂 JAR 複製到系統目錄 (請參閱「如何提交工作」一文中的注意事項)。
   2. 或者，您也可以指定其中一個 JAR 的 Cloud Storage 路徑 (gs://your-bucket/your-jarfile.jar) 或 Hadoop 分散式檔案系統路徑 (hdfs://path-to-jar.jar)。(如果使用 API 提交工作，請在 jarFileUris 欄位中指定這個路徑)。

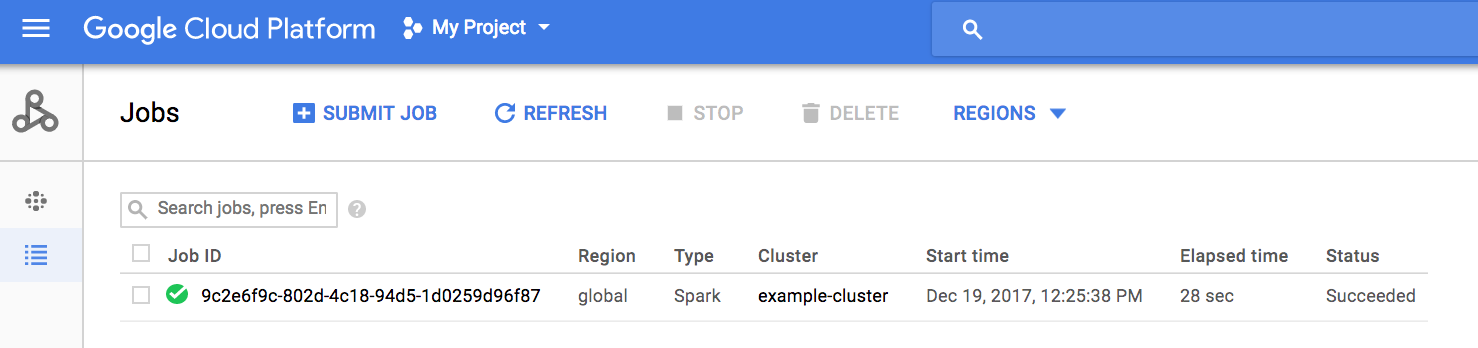

按一下 [Submit] (提交) 以啟動工作。工作啟動後，即會加入「Jobs」[工作] 清單中。

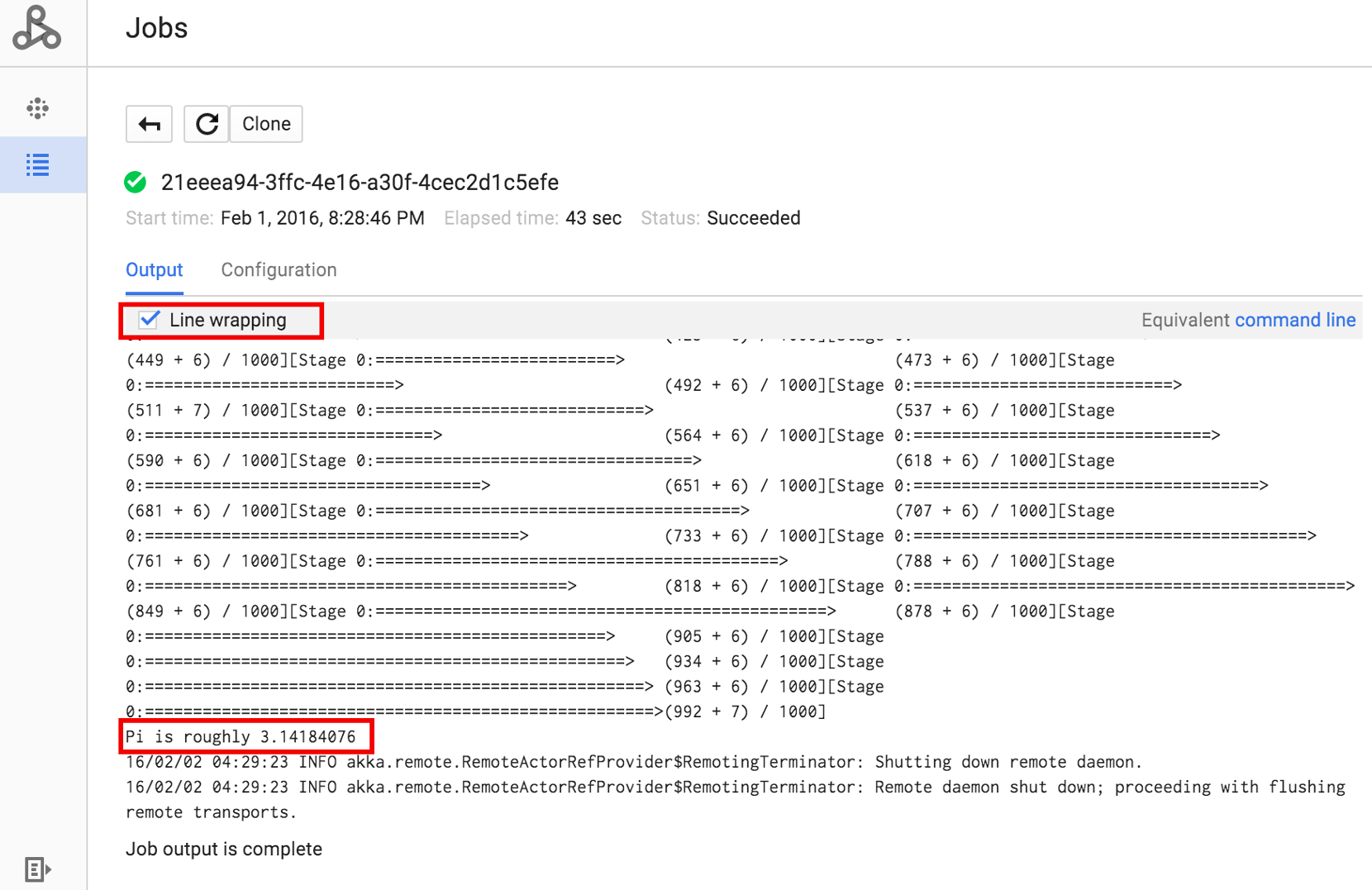

按一下工作 ID 以開啟「Jobs」(工作) 頁面，您可以在此頁面查看工作的驅動程式輸出。因為這項工作產生的輸出行長度超過瀏覽器視窗的寬度，您可以勾選「Line wrapping」(換行) 方塊，在視圖中顯示所有輸出文字，就可以顯示計算後的 pi 結果。

您可以使用下方顯示的 gcloud dataproc jobs wait 指令，從指令列查看工作的驅動程式輸出 (詳情請參閱查看工作輸出內容 - GCLOUD 指令)。複製專案 ID 並貼上做為 --project 標記的值；複製工作 ID (顯示在工作清單上) 並貼上做為最後一個引數的值。

gcloud dataproc jobs wait job-id \
    --project=project-id \
    --region=region

下列程式碼片段取自範例 SparkPi 工作的驅動程式輸出：

...
2015-06-25 23:27:23,810 INFO [dag-scheduler-event-loop]
scheduler.DAGScheduler (Logging.scala:logInfo(59)) - Stage 0 (reduce at
SparkPi.scala:35) finished in 21.169 s

2015-06-25 23:27:23,810 INFO [task-result-getter-3] cluster.YarnScheduler
(Logging.scala:logInfo(59)) - Removed TaskSet 0.0, whose tasks have all
completed, from pool

2015-06-25 23:27:23,819 INFO [main] scheduler.DAGScheduler
(Logging.scala:logInfo(59)) - Job 0 finished: reduce at SparkPi.scala:35,
took 21.674931 s

Pi is roughly 3.14189648
...
Job [c556b47a-4b46-4a94-9ba2-2dcee31167b2] finished successfully.

driverOutputUri:
gs://sample-staging-bucket/google-cloud-dataproc-metainfo/cfeaa033-749e-48b9-...
...

gcloud

如要將工作提交至 Managed Service for Apache Spark 叢集，請在本機的終端機視窗或 Cloud Shell 中執行 gcloud CLI gcloud dataproc jobs submit 指令。

gcloud dataproc jobs submit job-command \
    --cluster=cluster-name \
    --region=region \
    other dataproc-flags \
    -- job-args

1. 列出位於 Cloud Storage 中可公開存取的 hello-world.py。

   gcloud storage cat gs://dataproc-examples/pyspark/hello-world/hello-world.py


   列出檔案：

   #!/usr/bin/python
   import pyspark
   sc = pyspark.SparkContext()
   rdd = sc.parallelize(['Hello,', 'world!'])
   words = sorted(rdd.collect())
   print(words)

2. 將 PySpark 工作提交至 Managed Service for Apache Spark。

   gcloud dataproc jobs submit pyspark \
       gs://dataproc-examples/pyspark/hello-world/hello-world.py \
       --cluster=cluster-name  \
       --region=region


   終端機輸出：

   Waiting for job output...
   …
   ['Hello,', 'world!']
   Job finished successfully.


1. 執行預先安裝在 Managed Service for Apache Spark 叢集主要節點上的 SparkPi 範例。(file:///usr/lib/spark/examples/jars/spark-examples.jar 路徑僅適用於預先安裝的範例；如需自訂 JAR 依附元件，請參閱「如何提交工作」一文中的注意事項)。

   gcloud dataproc jobs submit spark \
       --cluster=cluster-name \
       --region=region \
       --class=org.apache.spark.examples.SparkPi \
       --jars=file:///usr/lib/spark/examples/jars/spark-examples.jar \
       -- 1000


   終端機輸出：

   Job [54825071-ae28-4c5b-85a5-58fae6a597d6] submitted.
   Waiting for job output…
   …
   Pi is roughly 3.14177148
   …
   Job finished successfully.
   …


REST

本節說明如何使用 Managed Service for Apache Spark jobs.submit API，提交 Spark 工作來計算 pi 的近似值。

使用任何要求資料之前，請先修改下列項目的值：

• project-id： Cloud de Confiance by S3NS 專案 ID
• region：叢集區域
• clusterName：叢集名稱

HTTP 方法和網址：

POST https://dataproc.googleapis.com/v1/projects/project-id/regions/region/jobs:submit

JSON 要求主體：

{
  "job": {
    "placement": {
      "clusterName": "cluster-name"
    },
    "sparkJob": {
      "args": [
        "1000"
      ],
      "mainClass": "org.apache.spark.examples.SparkPi",
      "jarFileUris": [
        "file:///usr/lib/spark/examples/jars/spark-examples.jar"
      ]
    }
  }
}

請展開以下其中一個選項，以傳送要求：

curl -X POST \
     -H "Authorization: Bearer $(gcloud auth print-access-token)" \
     -H "Content-Type: application/json; charset=utf-8" \
     -d @request.json \
     "https://dataproc.googleapis.com/v1/projects/project-id/regions/region/jobs:submit"

$cred = gcloud auth print-access-token
$headers = @{ "Authorization" = "Bearer $cred" }

Invoke-WebRequest `
    -Method POST `
    -Headers $headers `
    -ContentType: "application/json; charset=utf-8" `
    -InFile request.json `
    -Uri "https://dataproc.googleapis.com/v1/projects/project-id/regions/region/jobs:submit" | Select-Object -Expand Content

您應該會收到如下的 JSON 回覆：

{
  "reference": {
    "projectId": "project-id",
    "jobId": "job-id"
  },
  "placement": {
    "clusterName": "cluster-name",
    "clusterUuid": "cluster-Uuid"
  },
  "sparkJob": {
    "mainClass": "org.apache.spark.examples.SparkPi",
    "args": [
      "1000"
    ],
    "jarFileUris": [
      "file:///usr/lib/spark/examples/jars/spark-examples.jar"
    ]
  },
  "status": {
    "state": "PENDING",
    "stateStartTime": "2020-10-07T20:16:21.759Z"
  },
  "jobUuid": "job-Uuid"
}

Java

1. 安裝用戶端程式庫
2. 設定應用程式預設憑證
3. 執行程式碼

   import com.google.api.gax.longrunning.OperationFuture;
   import com.google.cloud.dataproc.v1.Job;
   import com.google.cloud.dataproc.v1.JobControllerClient;
   import com.google.cloud.dataproc.v1.JobControllerSettings;
   import com.google.cloud.dataproc.v1.JobMetadata;
   import com.google.cloud.dataproc.v1.JobPlacement;
   import com.google.cloud.dataproc.v1.SparkJob;
   import com.google.cloud.storage.Blob;
   import com.google.cloud.storage.Storage;
   import com.google.cloud.storage.StorageOptions;
   import java.io.IOException;
   import java.util.concurrent.ExecutionException;
   import java.util.regex.Matcher;
   import java.util.regex.Pattern;

   public class SubmitJob {

     public static void submitJob() throws IOException, InterruptedException {
       // TODO(developer): Replace these variables before running the sample.
       String projectId = "your-project-id";
       String region = "your-project-region";
       String clusterName = "your-cluster-name";
       submitJob(projectId, region, clusterName);
     }

     public static void submitJob(String projectId, String region, String clusterName)
         throws IOException, InterruptedException {
       String myEndpoint = String.format("%s-dataproc.googleapis.com:443", region);

       // Configure the settings for the job controller client.
       JobControllerSettings jobControllerSettings =
           JobControllerSettings.newBuilder().setEndpoint(myEndpoint).build();

       // Create a job controller client with the configured settings. Using a try-with-resources
       // closes the client,
       // but this can also be done manually with the .close() method.
       try (JobControllerClient jobControllerClient =
           JobControllerClient.create(jobControllerSettings)) {

         // Configure cluster placement for the job.
         JobPlacement jobPlacement = JobPlacement.newBuilder().setClusterName(clusterName).build();

         // Configure Spark job settings.
         SparkJob sparkJob =
             SparkJob.newBuilder()
                 .setMainClass("org.apache.spark.examples.SparkPi")
                 .addJarFileUris("file:///usr/lib/spark/examples/jars/spark-examples.jar")
                 .addArgs("1000")
                 .build();

         Job job = Job.newBuilder().setPlacement(jobPlacement).setSparkJob(sparkJob).build();

         // Submit an asynchronous request to execute the job.
         OperationFuture<Job, JobMetadata> submitJobAsOperationAsyncRequest =
             jobControllerClient.submitJobAsOperationAsync(projectId, region, job);

         Job response = submitJobAsOperationAsyncRequest.get();

         // Print output from Google Cloud Storage.
         Matcher matches =
             Pattern.compile("gs://(.*?)/(.*)").matcher(response.getDriverOutputResourceUri());
         matches.matches();

         Storage storage = StorageOptions.getDefaultInstance().getService();
         Blob blob = storage.get(matches.group(1), String.format("%s.000000000", matches.group(2)));

         System.out.println(
             String.format("Job finished successfully: %s", new String(blob.getContent())));

       } catch (ExecutionException e) {
         // If the job does not complete successfully, print the error message.
         System.err.println(String.format("submitJob: %s ", e.getMessage()));
       }
     }
   }

Python

1. 安裝用戶端程式庫
2. 設定應用程式預設憑證
3. 執行程式碼
   import re


   from google.cloud import dataproc_v1 as dataproc
   from google.cloud import storage


   def submit_job(project_id, region, cluster_name):
       # Create the job client.
       job_client = dataproc.JobControllerClient(
           client_options={"api_endpoint": f"{region}-dataproc.googleapis.com:443"}
       )

       # Create the job config. 'main_jar_file_uri' can also be a
       # Google Cloud Storage URL.
       job = {
           "placement": {"cluster_name": cluster_name},
           "spark_job": {
               "main_class": "org.apache.spark.examples.SparkPi",
               "jar_file_uris": ["file:///usr/lib/spark/examples/jars/spark-examples.jar"],
               "args": ["1000"],
           },
       }

       operation = job_client.submit_job_as_operation(
           request={"project_id": project_id, "region": region, "job": job}
       )
       response = operation.result()

       # Dataproc job output gets saved to the Google Cloud Storage bucket
       # allocated to the job. Use a regex to obtain the bucket and blob info.
       matches = re.match("gs://(.*?)/(.*)", response.driver_output_resource_uri)

       output = (
           storage.Client()
           .get_bucket(matches.group(1))
           .blob(f"{matches.group(2)}.000000000")
           .download_as_bytes()
           .decode("utf-8")
       )

       print(f"Job finished successfully: {output}")



Go

1. 安裝用戶端程式庫
2. 設定應用程式預設憑證
3. 執行程式碼
   import (
   	"context"
   	"fmt"
   	"io"
   	"log"
   	"regexp"

   	dataproc "cloud.google.com/go/dataproc/apiv1"
   	"cloud.google.com/go/dataproc/apiv1/dataprocpb"
   	"cloud.google.com/go/storage"
   	"google.golang.org/api/option"
   )

   func submitJob(w io.Writer, projectID, region, clusterName string) error {
   	// projectID := "your-project-id"
   	// region := "us-central1"
   	// clusterName := "your-cluster"
   	ctx := context.Background()

   	// Create the job client.
   	endpoint := fmt.Sprintf("%s-dataproc.googleapis.com:443", region)
   	jobClient, err := dataproc.NewJobControllerClient(ctx, option.WithEndpoint(endpoint))
   	if err != nil {
   		log.Fatalf("error creating the job client: %s\n", err)
   	}

   	// Create the job config.
   	submitJobReq := &dataprocpb.SubmitJobRequest{
   		ProjectId: projectID,
   		Region:    region,
   		Job: &dataprocpb.Job{
   			Placement: &dataprocpb.JobPlacement{
   				ClusterName: clusterName,
   			},
   			TypeJob: &dataprocpb.Job_SparkJob{
   				SparkJob: &dataprocpb.SparkJob{
   					Driver: &dataprocpb.SparkJob_MainClass{
   						MainClass: "org.apache.spark.examples.SparkPi",
   					},
   					JarFileUris: []string{"file:///usr/lib/spark/examples/jars/spark-examples.jar"},
   					Args:        []string{"1000"},
   				},
   			},
   		},
   	}

   	submitJobOp, err := jobClient.SubmitJobAsOperation(ctx, submitJobReq)
   	if err != nil {
   		return fmt.Errorf("error with request to submitting job: %w", err)
   	}

   	submitJobResp, err := submitJobOp.Wait(ctx)
   	if err != nil {
   		return fmt.Errorf("error submitting job: %w", err)
   	}

   	re := regexp.MustCompile("gs://(.+?)/(.+)")
   	matches := re.FindStringSubmatch(submitJobResp.DriverOutputResourceUri)

   	if len(matches) < 3 {
   		return fmt.Errorf("regex error: %s", submitJobResp.DriverOutputResourceUri)
   	}

   	// Dataproc job output gets saved to a GCS bucket allocated to it.
   	storageClient, err := storage.NewClient(ctx)
   	if err != nil {
   		return fmt.Errorf("error creating storage client: %w", err)
   	}

   	obj := fmt.Sprintf("%s.000000000", matches[2])
   	reader, err := storageClient.Bucket(matches[1]).Object(obj).NewReader(ctx)
   	if err != nil {
   		return fmt.Errorf("error reading job output: %w", err)
   	}

   	defer reader.Close()

   	body, err := io.ReadAll(reader)
   	if err != nil {
   		return fmt.Errorf("could not read output from Dataproc Job: %w", err)
   	}

   	fmt.Fprintf(w, "Job finished successfully: %s", body)

   	return nil
   }


Node.js

1. 安裝用戶端程式庫
2. 設定應用程式預設憑證
3. 執行程式碼
   const dataproc = require('@google-cloud/dataproc');
   const {Storage} = require('@google-cloud/storage');

   // TODO(developer): Uncomment and set the following variables
   // projectId = 'YOUR_PROJECT_ID'
   // region = 'YOUR_CLUSTER_REGION'
   // clusterName = 'YOUR_CLUSTER_NAME'

   // Create a client with the endpoint set to the desired cluster region
   const jobClient = new dataproc.v1.JobControllerClient({
     apiEndpoint: `${region}-dataproc.googleapis.com`,
     projectId: projectId,
   });

   async function submitJob() {
     const job = {
       projectId: projectId,
       region: region,
       job: {
         placement: {
           clusterName: clusterName,
         },
         sparkJob: {
           mainClass: 'org.apache.spark.examples.SparkPi',
           jarFileUris: [
             'file:///usr/lib/spark/examples/jars/spark-examples.jar',
           ],
           args: ['1000'],
         },
       },
     };

     const [jobOperation] = await jobClient.submitJobAsOperation(job);
     const [jobResponse] = await jobOperation.promise();

     const matches =
       jobResponse.driverOutputResourceUri.match('gs://(.*?)/(.*)');

     const storage = new Storage();

     const output = await storage
       .bucket(matches[1])
       .file(`${matches[2]}.000000000`)
       .download();

     // Output a success message.
     console.log(`Job finished successfully: ${output}`);
