借助 OpenTelemetry 跟踪,您可以识别和跟踪各种 Pub/Sub 客户端库操作(例如批处理、租约管理和流量控制)的延迟时间。收集这些信息有助于您调试客户端库问题。
OpenTelemetry 跟踪的一些潜在应用场景包括:
- 您的服务发布延迟时间比平时要长。
- 您遇到了大量消息重新传送的情况。
- 订阅者客户端的回调函数发生更改,导致处理时间比平时长。
准备工作
在配置 OpenTelemetry 之前,请完成以下任务:
- 使用其中一个客户端库设置 Pub/Sub。
- 安装 OpenTelemetry SDK 并设置跟踪记录导出器和跟踪器提供程序。
- 启用 Cloud Trace API。
- 了解如何读取 Cloud Observability 轨迹。
所需的角色
如需确保服务账号具有将轨迹导出到 Cloud Trace 所需的权限,请让管理员为服务账号授予项目的以下 IAM 角色:
-
所有用户:
Cloud Trace Agent (
roles/cloudtrace.agent
)
如需详细了解如何授予角色,请参阅管理对项目、文件夹和组织的访问权限。
这些预定义角色包含将轨迹导出到 Cloud Trace 所需的权限。如需查看所需的确切权限,请展开所需权限部分:
所需权限
如需将轨迹导出到 Cloud Trace,需要具备以下权限:
-
全部:
cloudtrace.traces.patch
您的管理员也可以使用自定义角色或其他预定义角色为服务账号授予这些权限。
OpenTelemetry 跟踪工作流
如需设置 OpenTelemetry 跟踪,您需要使用 Pub/Sub 客户端库和 OpenTelemetry SDK。使用 SDK 时,您必须先设置轨迹导出器和跟踪器提供程序,然后才能连接到 Pub/Sub 库。在某些库中,设置跟踪器提供程序是可选的。
Trace 导出器。OpenTelemetry SDK 使用跟踪记录导出器来确定将跟踪记录发送到何处。
Tracer 提供程序。Pub/Sub 客户端库使用跟踪器提供程序来创建轨迹。
以下步骤概述了如何设置跟踪:
- 实例化 Cloud Trace OpenTelemetry 导出器。
- 如果需要,请使用 OpenTelemetry SDK 实例化并注册 Tracer Provider。
- 使用启用 OpenTelemetry 跟踪选项配置客户端。
- 使用 Pub/Sub 客户端库发布消息。
跟踪功能的运作方式

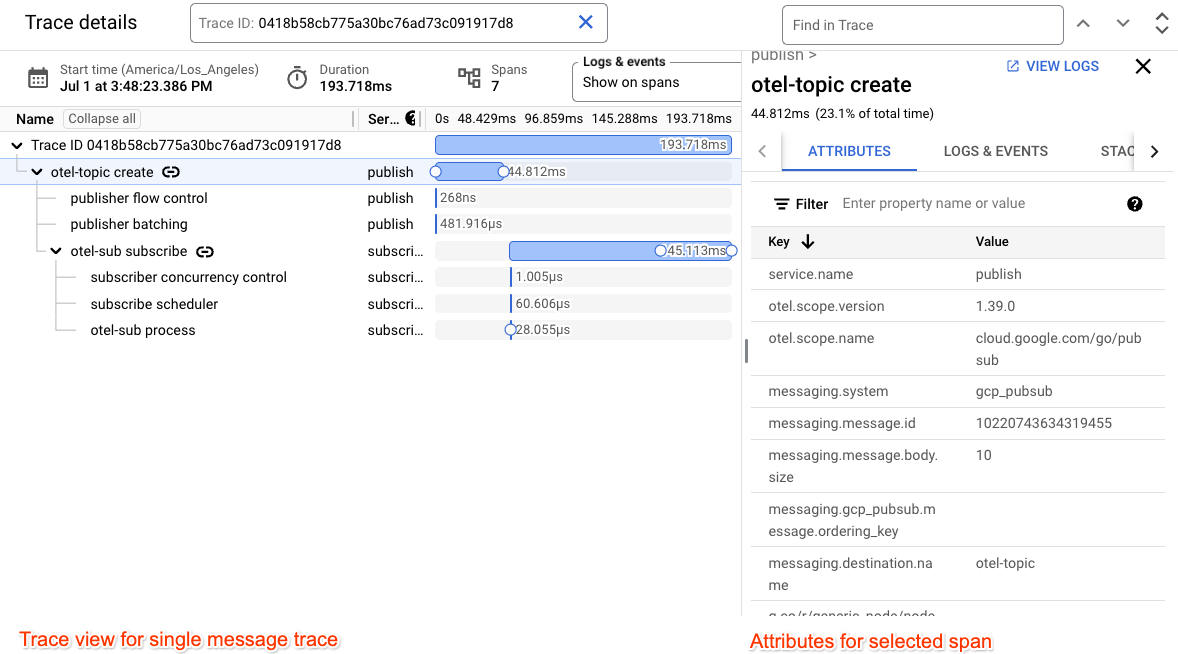

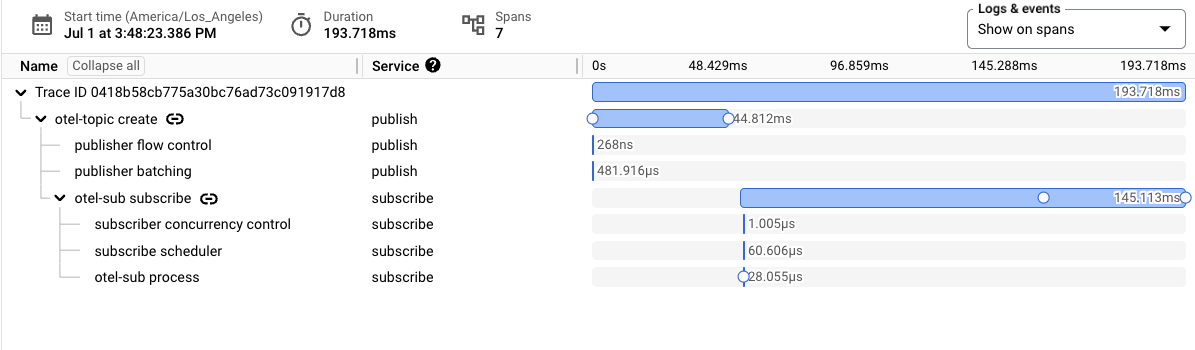

对于发布的每条消息,客户端库都会创建一个新的轨迹。此轨迹表示消息的整个生命周期,从您发布消息的那一刻起,一直到消息被确认为止。跟踪记录封装了操作时长、父 span 和子 span 以及关联 span 等信息。

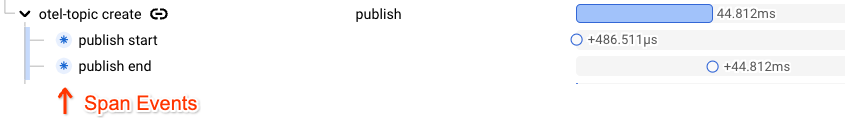

一个轨迹由一个根 span 及其对应的子 span 组成。这些 span 表示客户端库在处理消息时所做的工作。每条消息跟踪记录都包含以下信息:
- 用于发布。流量控制、排序密钥调度、批处理和发布 RPC 的长度。
- 对于订阅。并发控制、排序密钥调度和租约管理。
为了将信息从发布端传播到订阅端,客户端库会在发布端注入一个跟踪专用属性。仅当启用跟踪功能并以 googclient_
前缀开头时,上下文传播机制才会启用。
发布带有跟踪的消息
以下代码示例展示了如何使用 Pub/Sub 客户端库和 OpenTelemetry SDK 启用跟踪。在此示例中,跟踪结果会导出到 Cloud Trace。
注意事项
实例化跟踪器提供程序时,您可以使用 OpenTelemetry SDK 配置采样率。此比率决定了 SDK 应抽样多少轨迹。较低的抽样率有助于降低结算费用,并防止您的服务超出 Cloud Trace span 配额。
Go
import (
"context"
"fmt"
"io"
"cloud.google.com/go/pubsub/v2"
"go.opentelemetry.io/otel"
"google.golang.org/api/option"
texporter "github.com/GoogleCloudPlatform/opentelemetry-operations-go/exporter/trace"
"go.opentelemetry.io/otel/sdk/resource"
sdktrace "go.opentelemetry.io/otel/sdk/trace"
semconv "go.opentelemetry.io/otel/semconv/v1.26.0"
)
// publishOpenTelemetryTracing publishes a single message with OpenTelemetry tracing
// enabled, exporting to Cloud Trace.
func publishOpenTelemetryTracing(w io.Writer, projectID, topicID string, sampling float64) error {
// projectID := "my-project-id"
// topicID := "my-topic"
ctx := context.Background()
exporter, err := texporter.New(texporter.WithProjectID(projectID),
// Disable spans created by the exporter.
texporter.WithTraceClientOptions(
[]option.ClientOption{option.WithTelemetryDisabled()},
),
)
if err != nil {
return fmt.Errorf("error instantiating exporter: %w", err)
}
resources := resource.NewWithAttributes(
semconv.SchemaURL,
semconv.ServiceNameKey.String("publisher"),
)
// Instantiate a tracer provider with the following settings
tp := sdktrace.NewTracerProvider(
sdktrace.WithBatcher(exporter),
sdktrace.WithResource(resources),
sdktrace.WithSampler(
sdktrace.ParentBased(sdktrace.TraceIDRatioBased(sampling)),
),
)
defer tp.ForceFlush(ctx) // flushes any pending spans
otel.SetTracerProvider(tp)
// Create a new client with tracing enabled.
client, err := pubsub.NewClientWithConfig(ctx, projectID, &pubsub.ClientConfig{
EnableOpenTelemetryTracing: true,
})
if err != nil {
return fmt.Errorf("pubsub: NewClient: %w", err)
}
defer client.Close()
// client.Publisher can be passed a topic ID (e.g. "my-topic") or
// a fully qualified name (e.g. "projects/my-project/topics/my-topic").
// If a topic ID is provided, the project ID from the client is used.
// Reuse this publisher for all publish calls to send messages in batches.
publisher := client.Publisher(topicID)
result := publisher.Publish(ctx, &pubsub.Message{
Data: []byte("Publishing message with tracing"),
})
if _, err := result.Get(ctx); err != nil {
return fmt.Errorf("pubsub: result.Get: %w", err)
}
fmt.Fprintln(w, "Published a traced message")
return nil
}
C++
// Create a few namespace aliases to make the code easier to read.
namespace gc = ::google::cloud;
namespace otel = gc::otel;
namespace pubsub = gc::pubsub;
// This example uses a simple wrapper to export (upload) OTel tracing data
// to Google Cloud Trace. More complex applications may use different
// authentication, or configure their own OTel exporter.
auto project = gc::Project(project_id);
auto configuration = otel::ConfigureBasicTracing(project);
auto publisher = pubsub::Publisher(pubsub::MakePublisherConnection(
pubsub::Topic(project_id, topic_id),
// Configure this publisher to enable OTel tracing. Some applications may
// chose to disable tracing in some publishers or to dynamically enable
// this option based on their own configuration.
gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));
// After this point, use the Cloud Pub/Sub C++ client library as usual.
// In this example, we will send a few messages and configure a callback
// action for each one.
std::vector<gc::future<void>> ids;
for (int i = 0; i < 5; i++) {
auto id = publisher.Publish(pubsub::MessageBuilder().SetData("Hi!").Build())
.then([](gc::future<gc::StatusOr<std::string>> f) {
auto id = f.get();
if (!id) {
std::cout << "Error in publish: " << id.status() << "\n";
return;
}
std::cout << "Sent message with id: (" << *id << ")\n";
});
ids.push_back(std::move(id));
}
// Block until the messages are actually sent.
for (auto& id : ids) id.get();
Python
在尝试此示例之前,请按照《快速入门:使用客户端库》中的 Python 设置说明进行操作。 如需了解详情,请参阅 Pub/Sub Python API 参考文档。
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
BatchSpanProcessor,
)
from opentelemetry.exporter.cloud_trace import CloudTraceSpanExporter
from opentelemetry.sdk.trace.sampling import TraceIdRatioBased, ParentBased
from google.cloud.pubsub_v1 import PublisherClient
from google.cloud.pubsub_v1.types import PublisherOptions
# TODO(developer)
# topic_project_id = "your-topic-project-id"
# trace_project_id = "your-trace-project-id"
# topic_id = "your-topic-id"
# In this sample, we use a Google Cloud Trace to export the OpenTelemetry
# traces: https://cloud.google.com/trace/docs/setup/python-ot
# Choose and configure the exporter for your set up accordingly.
sampler = ParentBased(root=TraceIdRatioBased(1))
trace.set_tracer_provider(TracerProvider(sampler=sampler))
# Export to Google Trace.
cloud_trace_exporter = CloudTraceSpanExporter(
project_id=trace_project_id,
)
trace.get_tracer_provider().add_span_processor(
BatchSpanProcessor(cloud_trace_exporter)
)
# Set the `enable_open_telemetry_tracing` option to True when creating
# the publisher client. This in itself is necessary and sufficient for
# the library to export OpenTelemetry traces. However, where the traces
# must be exported to needs to be configured based on your OpenTelemetry
# set up. Refer: https://opentelemetry.io/docs/languages/python/exporters/
publisher = PublisherClient(
publisher_options=PublisherOptions(
enable_open_telemetry_tracing=True,
),
)
# The `topic_path` method creates a fully qualified identifier
# in the form `projects/{project_id}/topics/{topic_id}`
topic_path = publisher.topic_path(topic_project_id, topic_id)
# Publish messages.
for n in range(1, 10):
data_str = f"Message number {n}"
# Data must be a bytestring
data = data_str.encode("utf-8")
# When you publish a message, the client returns a future.
future = publisher.publish(topic_path, data)
print(future.result())
print(f"Published messages to {topic_path}.")
TypeScript
/**
* TODO(developer): Uncomment these variables before running the sample.
*/
// const topicNameOrId = 'YOUR_TOPIC_OR_ID';
// const data = 'Hello, world!";
// Imports the Google Cloud client library
import {PubSub} from '@google-cloud/pubsub';
// Imports the OpenTelemetry API
import {NodeTracerProvider} from '@opentelemetry/sdk-trace-node';
import {diag, DiagConsoleLogger, DiagLogLevel} from '@opentelemetry/api';
import {SimpleSpanProcessor} from '@opentelemetry/sdk-trace-base';
// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';
// To output to Cloud Trace, import the OpenTelemetry bridge library.
import {TraceExporter} from '@google-cloud/opentelemetry-cloud-trace-exporter';
import {Resource} from '@opentelemetry/resources';
import {SEMRESATTRS_SERVICE_NAME} from '@opentelemetry/semantic-conventions';
// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);
// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();
// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();
// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
resource: new Resource({
[SEMRESATTRS_SERVICE_NAME]: 'otel publisher example',
}),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();
// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});
async function publishMessage(topicNameOrId: string, data: string) {
// Publishes the message as a string, e.g. "Hello, world!"
// or JSON.stringify(someObject)
const dataBuffer = Buffer.from(data);
// Cache topic objects (publishers) and reuse them.
const publisher = pubSubClient.topic(topicNameOrId);
const messageId = await publisher.publishMessage({data: dataBuffer});
console.log(`Message ${messageId} published.`);
// The rest of the sample is in service to making sure that any
// buffered Pub/Sub messages and/or OpenTelemetry spans are properly
// flushed to the server side. In normal usage, you'd only need to do
// something like this on process shutdown.
await publisher.flush();
await processor.forceFlush();
await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}
Node.js
/**
* TODO(developer): Uncomment these variables before running the sample.
*/
// const topicNameOrId = 'YOUR_TOPIC_OR_ID';
// const data = 'Hello, world!";
// Imports the Google Cloud client library
const {PubSub} = require('@google-cloud/pubsub');
// Imports the OpenTelemetry API
const {NodeTracerProvider} = require('@opentelemetry/sdk-trace-node');
const {diag, DiagConsoleLogger, DiagLogLevel} = require('@opentelemetry/api');
const {SimpleSpanProcessor} = require('@opentelemetry/sdk-trace-base');
// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';
// To output to Cloud Trace, import the OpenTelemetry bridge library.
const {
TraceExporter,
} = require('@google-cloud/opentelemetry-cloud-trace-exporter');
const {Resource} = require('@opentelemetry/resources');
const {
SEMRESATTRS_SERVICE_NAME,
} = require('@opentelemetry/semantic-conventions');
// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);
// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();
// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();
// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
resource: new Resource({
[SEMRESATTRS_SERVICE_NAME]: 'otel publisher example',
}),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();
// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});
async function publishMessage(topicNameOrId, data) {
// Publishes the message as a string, e.g. "Hello, world!"
// or JSON.stringify(someObject)
const dataBuffer = Buffer.from(data);
// Cache topic objects (publishers) and reuse them.
const publisher = pubSubClient.topic(topicNameOrId);
const messageId = await publisher.publishMessage({data: dataBuffer});
console.log(`Message ${messageId} published.`);
// The rest of the sample is in service to making sure that any
// buffered Pub/Sub messages and/or OpenTelemetry spans are properly
// flushed to the server side. In normal usage, you'd only need to do
// something like this on process shutdown.
await publisher.flush();
await processor.forceFlush();
await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}
Java
import com.google.api.core.ApiFuture;
import com.google.cloud.opentelemetry.trace.TraceConfiguration;
import com.google.cloud.opentelemetry.trace.TraceExporter;
import com.google.cloud.pubsub.v1.Publisher;
import com.google.protobuf.ByteString;
import com.google.pubsub.v1.PubsubMessage;
import com.google.pubsub.v1.TopicName;
import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.SimpleSpanProcessor;
import io.opentelemetry.sdk.trace.export.SpanExporter;
import io.opentelemetry.sdk.trace.samplers.Sampler;
import io.opentelemetry.semconv.ResourceAttributes;
import java.io.IOException;
import java.util.concurrent.ExecutionException;
import java.util.concurrent.TimeUnit;
public class OpenTelemetryPublisherExample {
public static void main(String... args) throws Exception {
// TODO(developer): Replace these variables before running the sample.
String projectId = "your-project-id";
String topicId = "your-topic-id";
openTelemetryPublisherExample(projectId, topicId);
}
public static void openTelemetryPublisherExample(String projectId, String topicId)
throws IOException, ExecutionException, InterruptedException {
Resource resource =
Resource.getDefault().toBuilder()
.put(ResourceAttributes.SERVICE_NAME, "publisher-example")
.build();
// Creates a Cloud Trace exporter.
SpanExporter traceExporter =
TraceExporter.createWithConfiguration(
TraceConfiguration.builder().setProjectId(projectId).build());
SdkTracerProvider sdkTracerProvider =
SdkTracerProvider.builder()
.setResource(resource)
.addSpanProcessor(SimpleSpanProcessor.create(traceExporter))
.setSampler(Sampler.alwaysOn())
.build();
OpenTelemetry openTelemetry =
OpenTelemetrySdk.builder().setTracerProvider(sdkTracerProvider).buildAndRegisterGlobal();
TopicName topicName = TopicName.of(projectId, topicId);
Publisher publisher = null;
try {
// Create a publisher instance with the created OpenTelemetry object and enabling tracing.
publisher =
Publisher.newBuilder(topicName)
.setOpenTelemetry(openTelemetry)
.setEnableOpenTelemetryTracing(true)
.build();
String message = "Hello World!";
ByteString data = ByteString.copyFromUtf8(message);
PubsubMessage pubsubMessage = PubsubMessage.newBuilder().setData(data).build();
// Once published, returns a server-assigned message id (unique within the topic)
ApiFuture<String> messageIdFuture = publisher.publish(pubsubMessage);
String messageId = messageIdFuture.get();
System.out.println("Published message ID: " + messageId);
} finally {
if (publisher != null) {
// When finished with the publisher, shutdown to free up resources.
publisher.shutdown();
publisher.awaitTermination(1, TimeUnit.MINUTES);
}
}
}
}
接收带有跟踪信息的消息
Go
import (
"context"
"fmt"
"io"
"sync/atomic"
"time"
"cloud.google.com/go/pubsub/v2"
texporter "github.com/GoogleCloudPlatform/opentelemetry-operations-go/exporter/trace"
"go.opentelemetry.io/otel"
"go.opentelemetry.io/otel/sdk/resource"
sdktrace "go.opentelemetry.io/otel/sdk/trace"
semconv "go.opentelemetry.io/otel/semconv/v1.24.0"
"google.golang.org/api/option"
)
func subscribeOpenTelemetryTracing(w io.Writer, projectID, subID string, sampleRate float64) error {
// projectID := "my-project-id"
// subID := "my-sub"
// sampleRate := "1.0"
ctx := context.Background()
exporter, err := texporter.New(texporter.WithProjectID(projectID),
// Disable spans created by the exporter.
texporter.WithTraceClientOptions(
[]option.ClientOption{option.WithTelemetryDisabled()},
),
)
if err != nil {
return fmt.Errorf("error instantiating exporter: %w", err)
}
resources := resource.NewWithAttributes(
semconv.SchemaURL,
semconv.ServiceNameKey.String("subscriber"),
)
// Instantiate a tracer provider with the following settings
tp := sdktrace.NewTracerProvider(
sdktrace.WithBatcher(exporter),
sdktrace.WithResource(resources),
sdktrace.WithSampler(
sdktrace.ParentBased(sdktrace.TraceIDRatioBased(sampleRate)),
),
)
defer tp.ForceFlush(ctx) // flushes any pending spans
otel.SetTracerProvider(tp)
// Create a new client with tracing enabled.
client, err := pubsub.NewClientWithConfig(ctx, projectID, &pubsub.ClientConfig{
EnableOpenTelemetryTracing: true,
})
if err != nil {
return fmt.Errorf("pubsub.NewClient: %w", err)
}
defer client.Close()
// client.Subscriber can be passed a subscription ID (e.g. "my-sub") or
// a fully qualified name (e.g. "projects/my-project/subscriptions/my-sub").
// If a subscription ID is provided, the project ID from the client is used.
sub := client.Subscriber(subID)
// Receive messages for 10 seconds, which simplifies testing.
// Comment this out in production, since `Receive` should
// be used as a long running operation.
ctx, cancel := context.WithTimeout(ctx, 10*time.Second)
defer cancel()
var received int32
err = sub.Receive(ctx, func(_ context.Context, msg *pubsub.Message) {
fmt.Fprintf(w, "Got message: %q\n", string(msg.Data))
atomic.AddInt32(&received, 1)
msg.Ack()
})
if err != nil {
return fmt.Errorf("sub.Receive: %w", err)
}
fmt.Fprintf(w, "Received %d messages\n", received)
return nil
}
C++
#include "google/cloud/opentelemetry/configure_basic_tracing.h"
#include "google/cloud/opentelemetry_options.h"
#include "google/cloud/pubsub/message.h"
#include "google/cloud/pubsub/publisher.h"
#include "google/cloud/pubsub/subscriber.h"
#include "google/cloud/pubsub/subscription.h"
#include <iostream>
int main(int argc, char* argv[]) try {
if (argc != 4) {
std::cerr << "Usage: " << argv[0]
<< " <project-id> <topic-id> <subscription-id>\n";
return 1;
}
std::string const project_id = argv[1];
std::string const topic_id = argv[2];
std::string const subscription_id = argv[3];
// Create a few namespace aliases to make the code easier to read.
namespace gc = ::google::cloud;
namespace otel = gc::otel;
namespace pubsub = gc::pubsub;
auto constexpr kWaitTimeout = std::chrono::seconds(30);
auto project = gc::Project(project_id);
auto configuration = otel::ConfigureBasicTracing(project);
// Publish a message with tracing enabled.
auto publisher = pubsub::Publisher(pubsub::MakePublisherConnection(
pubsub::Topic(project_id, topic_id),
gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));
// Block until the message is actually sent and throw on error.
auto id = publisher.Publish(pubsub::MessageBuilder().SetData("Hi!").Build())
.get()
.value();
std::cout << "Sent message with id: (" << id << ")\n";
// Receive a message using streaming pull with tracing enabled.
auto subscriber = pubsub::Subscriber(pubsub::MakeSubscriberConnection(
pubsub::Subscription(project_id, subscription_id),
gc::Options{}.set<gc::OpenTelemetryTracingOption>(true)));
auto session =
subscriber.Subscribe([&](pubsub::Message const& m, pubsub::AckHandler h) {
std::cout << "Received message " << m << "\n";
std::move(h).ack();
});
std::cout << "Waiting for messages on " + subscription_id + "...\n";
// Blocks until the timeout is reached.
auto result = session.wait_for(kWaitTimeout);
if (result == std::future_status::timeout) {
std::cout << "timeout reached, ending session\n";
session.cancel();
}
return 0;
} catch (google::cloud::Status const& status) {
std::cerr << "google::cloud::Status thrown: " << status << "\n";
return 1;
}
Python
from opentelemetry import trace
from opentelemetry.sdk.trace import TracerProvider
from opentelemetry.sdk.trace.export import (
BatchSpanProcessor,
)
from opentelemetry.exporter.cloud_trace import CloudTraceSpanExporter
from opentelemetry.sdk.trace.sampling import TraceIdRatioBased, ParentBased
from google.cloud import pubsub_v1
from google.cloud.pubsub_v1 import SubscriberClient
from google.cloud.pubsub_v1.types import SubscriberOptions
# TODO(developer)
# subscription_project_id = "your-subscription-project-id"
# subscription_id = "your-subscription-id"
# cloud_trace_project_id = "your-cloud-trace-project-id"
# timeout = 300.0
# In this sample, we use a Google Cloud Trace to export the OpenTelemetry
# traces: https://cloud.google.com/trace/docs/setup/python-ot
# Choose and configure the exporter for your set up accordingly.
sampler = ParentBased(root=TraceIdRatioBased(1))
trace.set_tracer_provider(TracerProvider(sampler=sampler))
# Export to Google Trace
cloud_trace_exporter = CloudTraceSpanExporter(
project_id=cloud_trace_project_id,
)
trace.get_tracer_provider().add_span_processor(
BatchSpanProcessor(cloud_trace_exporter)
)
# Set the `enable_open_telemetry_tracing` option to True when creating
# the subscriber client. This in itself is necessary and sufficient for
# the library to export OpenTelemetry traces. However, where the traces
# must be exported to needs to be configured based on your OpenTelemetry
# set up. Refer: https://opentelemetry.io/docs/languages/python/exporters/
subscriber = SubscriberClient(
subscriber_options=SubscriberOptions(enable_open_telemetry_tracing=True)
)
# The `subscription_path` method creates a fully qualified identifier
# in the form `projects/{project_id}/subscriptions/{subscription_id}`
subscription_path = subscriber.subscription_path(
subscription_project_id, subscription_id
)
# Define callback to be called when a message is received.
def callback(message: pubsub_v1.subscriber.message.Message) -> None:
# Ack message after processing it.
print(message.data)
message.ack()
# Wrap subscriber in a 'with' block to automatically call close() when done.
with subscriber:
try:
# Optimistically subscribe to messages on the subscription.
streaming_pull_future = subscriber.subscribe(
subscription_path, callback=callback
)
streaming_pull_future.result(timeout=timeout)
except TimeoutError:
print("Successfully subscribed until the timeout passed.")
streaming_pull_future.cancel() # Trigger the shutdown.
streaming_pull_future.result() # Block until the shutdown is complete.
TypeScript
/**
* TODO(developer): Uncomment these variables before running the sample.
*/
// const subscriptionNameOrId = 'YOUR_SUBSCRIPTION_OR_ID';
// Imports the Google Cloud client library
import {Message, PubSub} from '@google-cloud/pubsub';
// Imports the OpenTelemetry API
import {NodeTracerProvider} from '@opentelemetry/sdk-trace-node';
import {diag, DiagConsoleLogger, DiagLogLevel} from '@opentelemetry/api';
import {SimpleSpanProcessor} from '@opentelemetry/sdk-trace-base';
// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';
// To output to Cloud Trace, import the OpenTelemetry bridge library.
import {TraceExporter} from '@google-cloud/opentelemetry-cloud-trace-exporter';
import {Resource} from '@opentelemetry/resources';
import {SEMRESATTRS_SERVICE_NAME} from '@opentelemetry/semantic-conventions';
// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);
// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();
// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();
// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
resource: new Resource({
[SEMRESATTRS_SERVICE_NAME]: 'otel subscriber example',
}),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();
// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});
async function subscriptionListen(subscriptionNameOrId: string) {
const subscriber = pubSubClient.subscription(subscriptionNameOrId);
// Message handler for subscriber
const messageHandler = async (message: Message) => {
console.log(`Message ${message.id} received.`);
message.ack();
};
// Error handler for subscriber
const errorHandler = async (error: Error) => {
console.log('Received error:', error);
};
// Listens for new messages from the topic
subscriber.on('message', messageHandler);
subscriber.on('error', errorHandler);
// Ensures that all spans got flushed by the exporter. This function
// is in service to making sure that any buffered Pub/Sub messages
// and/or OpenTelemetry spans are properly flushed to the server
// side. In normal usage, you'd only need to do something like this
// on process shutdown.
async function shutdown() {
await subscriber.close();
await processor.forceFlush();
await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}
// Wait a bit for the subscription to receive messages, then shut down
// gracefully. This is for the sample only; normally you would not need
// this delay.
await new Promise<void>(r =>
setTimeout(async () => {
subscriber.removeAllListeners();
await shutdown();
r();
}, SUBSCRIBER_TIMEOUT * 1000),
);
}
Node.js
/**
* TODO(developer): Uncomment these variables before running the sample.
*/
// const subscriptionNameOrId = 'YOUR_SUBSCRIPTION_OR_ID';
// Imports the Google Cloud client library
const {PubSub} = require('@google-cloud/pubsub');
// Imports the OpenTelemetry API
const {NodeTracerProvider} = require('@opentelemetry/sdk-trace-node');
const {diag, DiagConsoleLogger, DiagLogLevel} = require('@opentelemetry/api');
const {SimpleSpanProcessor} = require('@opentelemetry/sdk-trace-base');
// To output to the console for testing, use the ConsoleSpanExporter.
// import {ConsoleSpanExporter} from '@opentelemetry/sdk-trace-base';
// To output to Cloud Trace, import the OpenTelemetry bridge library.
const {
TraceExporter,
} = require('@google-cloud/opentelemetry-cloud-trace-exporter');
const {Resource} = require('@opentelemetry/resources');
const {
SEMRESATTRS_SERVICE_NAME,
} = require('@opentelemetry/semantic-conventions');
// Enable the diagnostic logger for OpenTelemetry
diag.setLogger(new DiagConsoleLogger(), DiagLogLevel.DEBUG);
// Log spans out to the console, for testing.
// const exporter = new ConsoleSpanExporter();
// Log spans out to Cloud Trace, for production.
const exporter = new TraceExporter();
// Build a tracer provider and a span processor to do
// something with the spans we're generating.
const provider = new NodeTracerProvider({
resource: new Resource({
[SEMRESATTRS_SERVICE_NAME]: 'otel subscriber example',
}),
});
const processor = new SimpleSpanProcessor(exporter);
provider.addSpanProcessor(processor);
provider.register();
// Creates a client; cache this for further use.
const pubSubClient = new PubSub({enableOpenTelemetryTracing: true});
async function subscriptionListen(subscriptionNameOrId) {
const subscriber = pubSubClient.subscription(subscriptionNameOrId);
// Message handler for subscriber
const messageHandler = async message => {
console.log(`Message ${message.id} received.`);
message.ack();
};
// Error handler for subscriber
const errorHandler = async error => {
console.log('Received error:', error);
};
// Listens for new messages from the topic
subscriber.on('message', messageHandler);
subscriber.on('error', errorHandler);
// Ensures that all spans got flushed by the exporter. This function
// is in service to making sure that any buffered Pub/Sub messages
// and/or OpenTelemetry spans are properly flushed to the server
// side. In normal usage, you'd only need to do something like this
// on process shutdown.
async function shutdown() {
await subscriber.close();
await processor.forceFlush();
await new Promise(r => setTimeout(r, OTEL_TIMEOUT * 1000));
}
// Wait a bit for the subscription to receive messages, then shut down
// gracefully. This is for the sample only; normally you would not need
// this delay.
await new Promise(r =>
setTimeout(async () => {
subscriber.removeAllListeners();
await shutdown();
r();
}, SUBSCRIBER_TIMEOUT * 1000),
);
}
Java
import com.google.cloud.opentelemetry.trace.TraceConfiguration;
import com.google.cloud.opentelemetry.trace.TraceExporter;
import com.google.cloud.pubsub.v1.AckReplyConsumer;
import com.google.cloud.pubsub.v1.MessageReceiver;
import com.google.cloud.pubsub.v1.Subscriber;
import com.google.pubsub.v1.ProjectSubscriptionName;
import com.google.pubsub.v1.PubsubMessage;
import io.opentelemetry.api.OpenTelemetry;
import io.opentelemetry.sdk.OpenTelemetrySdk;
import io.opentelemetry.sdk.resources.Resource;
import io.opentelemetry.sdk.trace.SdkTracerProvider;
import io.opentelemetry.sdk.trace.export.SimpleSpanProcessor;
import io.opentelemetry.sdk.trace.export.SpanExporter;
import io.opentelemetry.sdk.trace.samplers.Sampler;
import io.opentelemetry.semconv.ResourceAttributes;
import java.util.concurrent.TimeUnit;
import java.util.concurrent.TimeoutException;
public class OpenTelemetrySubscriberExample {
public static void main(String... args) throws Exception {
// TODO(developer): Replace these variables before running the sample.
String projectId = "your-project-id";
String subscriptionId = "your-subscription-id";
openTelemetrySubscriberExample(projectId, subscriptionId);
}
public static void openTelemetrySubscriberExample(String projectId, String subscriptionId) {
Resource resource =
Resource.getDefault().toBuilder()
.put(ResourceAttributes.SERVICE_NAME, "subscriber-example")
.build();
// Creates a Cloud Trace exporter.
SpanExporter traceExporter =
TraceExporter.createWithConfiguration(
TraceConfiguration.builder().setProjectId(projectId).build());
SdkTracerProvider sdkTracerProvider =
SdkTracerProvider.builder()
.setResource(resource)
.addSpanProcessor(SimpleSpanProcessor.create(traceExporter))
.setSampler(Sampler.alwaysOn())
.build();
OpenTelemetry openTelemetry =
OpenTelemetrySdk.builder().setTracerProvider(sdkTracerProvider).buildAndRegisterGlobal();
ProjectSubscriptionName subscriptionName =
ProjectSubscriptionName.of(projectId, subscriptionId);
// Instantiate an asynchronous message receiver.
MessageReceiver receiver =
(PubsubMessage message, AckReplyConsumer consumer) -> {
// Handle incoming message, then ack the received message.
System.out.println("Id: " + message.getMessageId());
System.out.println("Data: " + message.getData().toStringUtf8());
consumer.ack();
};
Subscriber subscriber = null;
try {
subscriber =
Subscriber.newBuilder(subscriptionName, receiver)
.setOpenTelemetry(openTelemetry)
.setEnableOpenTelemetryTracing(true)
.build();
// Start the subscriber.
subscriber.startAsync().awaitRunning();
System.out.printf("Listening for messages on %s:\n", subscriptionName.toString());
// Allow the subscriber to run for 30s unless an unrecoverable error occurs.
subscriber.awaitTerminated(30, TimeUnit.SECONDS);
} catch (TimeoutException timeoutException) {
// Shut down the subscriber after 30s. Stop receiving messages.
subscriber.stopAsync();
}
}
}
分析轨迹
以下各部分详细介绍了如何在 Trusted Cloud 控制台中跟踪和分析轨迹。
注意事项
- 发布一批消息时,发布 RPC span 会捕获在单独的轨迹中。
- 发布 RPC 具有多个来源 span,因为多个创建调用在批处理在一起时可能会导致发布 RPC。
OpenTelemetry 中的 span 可以有零个或一个父 span。
表示批处理操作(例如发布批次,从逻辑上讲,该操作应具有多个父级)的 span 无法使用零个或一个父级 span 来表示。
跟踪在消息生命周期内创建的 span
下图显示了在单个轨迹中为单个消息创建的 span 的示例。
每个 span 都可以具有提供额外信息的其他属性,例如消息字节大小和排序键信息。
Span 属性可传递其他元数据,例如消息的排序键、消息 ID 和消息大小。
主要发布和订阅 span 会通过 span 事件进行扩充,这些事件对应于网络调用的发出时间和完成时间。
排查常见问题
以下问题可能会导致跟踪出现问题:
- 您用于导出轨迹的服务账号没有所需的
roles/cloudtrace.agent
角色。 - Cloud Trace 中已达到提取的 span 数量上限配额。
- 您的应用在未调用相应的 flush 函数的情况下终止。
