Migrate Apache Hive Metastore tables to Cloud de Confiance

This document shows you how to migrate your Iceberg and Hive tables managed by Apache Hive Metastore to Cloud de Confiance using the BigQuery Data Transfer Service.

The Apache Hive Metastore migration connector in the BigQuery Data Transfer Service lets you seamlessly migrate your Hive Metastore tables to Cloud de Confiance at scale. This connector supports both Hive and Iceberg tables from on-premises installations and cloud environments, including Cloudera setups. The Hive Metastore migration connector supports files stored in the following data sources:

• Apache Hadoop Distributed File System (HDFS)
• Amazon Simple Storage Service (Amazon S3)
• Azure Blob Storage or Azure Data Lake Storage Gen2

With the Hive Metastore migration connector, you can use Cloud Storage as the file storage and register your Hive Metastore tables with one of the following metastores:

• BigLake metastore Iceberg REST Catalog

  We recommend using the BigLake metastore Iceberg REST Catalog for all your Iceberg data.

  The BigLake metastore Iceberg REST Catalog creates interoperability between your query engines by offering a single source of truth for all of your Iceberg data. You can use BigQuery to query the data, in addition to Apache Spark and other OSS engines. The BigLake metastore Iceberg REST Catalog only supports Iceberg table formats.

• Dataproc Metastore

  Dataproc Metastore supports both Hive and Iceberg table formats. You can only use Apache Spark and other OSS engines to read and write data to Dataproc Metastore.

This connector supports both full and metadata-only transfers. Full transfers will transfer both your data and metadata from your source tables to your target metastore. You can create a metadata-only transfer if you already have your data in Cloud Storage and if you only want to register your data to a destination metastore.

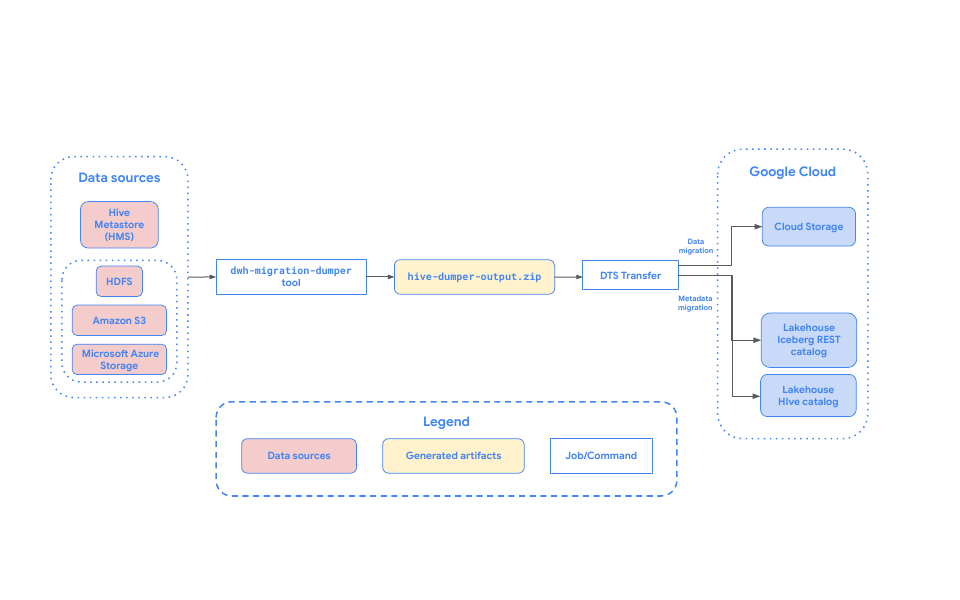

The following diagram provides an overview of the migration process.

Limitations

Hive Metastore table transfers are subject to the following limitations:

• Hive Metastore transfers must have a minimum of 24 hours between 2 scheduled runs. On demand runs can still be triggered at any interval.
• To migrate Hive tables, you must use Dataproc Metastore as your destination metastore.
• File names must comply with Cloud Storage object naming requirements.
• Cloud Storage has a 5 TiB limit for single objects. Files within your Hive Metastore tables larger than 5 TiB will fail to transfer.
• Storage Transfer Service has specific behaviors if data is changed at the source while a transfer is in progress. We don't recommend writing to tables while the table is being actively migrated. For a list of other Storage Transfer Service limitations, see known limitations.

Data ingestion options

The following sections provide more information about how you can configure your Hive Metastore transfers.

Incremental transfers

When a transfer configuration is set up with a recurring schedule, every subsequent transfer updates the table on Cloud de Confiance by S3NS with the latest updates made to the source table. For example, all data updates and all insert, delete, or update operations with schema changes are reflected in Cloud de Confiance by S3NS with each transfer.

Filter partitions

You can transfer a subset of partitions from your Hive tables by providing a custom filter JSON file stored in Cloud Storage. When scheduling the transfer, supply the full Cloud Storage path to this JSON file using the partition_filter_gcs_path parameter.

The following is an example of the filter JSON file structure:

{
  "filters": [
    {
      "table": "db1.table1", "condition": "IN", "partition":
      ["partition1=value1/partition2=value2"]
    },
    {
      "table": "db1.table2", "condition": "LESS_THAN", "partition":
      ["partition1;value1"]
    },
    {
      "table": "db1.table3", "condition": "GREATER_THAN", "partition":
      ["partition1;value1"]
    },
    {
      "table": "db1.table4", "condition": "RANGE", "partition":
      ["partition1;value1;value2"]
    }
  ]
}

Filter conditions

The condition field in the JSON file supports the following values, each with a specific format for the partition array:

• IN: Specifies the exact partition paths to include. The partition array contains strings representing the exact directory structure of the partitions relative to the table base path (for example, ["partition_key1=value1/partition_key2=value2"]). You can specify multiple paths in the array.
• LESS_THAN: Includes partitions where the primary partition key value is less than or equal to the specified value. The partition array must contain a single string in the format ["<partition_key>;<value>"].
• GREATER_THAN: Includes partitions where the primary partition key value is greater than or equal to the specified value. The partition array must contain a single string in the format ["<partition_key>;<value>"].
• RANGE: Includes partitions where the primary partition key value falls within the specified range (inclusive). The partition array must contain a single string in the format ["<partition_key>;<start_value>;<end_value>"].

The filter conditions are subject to the following rules and restrictions:

• Inclusive values: Filter conditions for GREATER_THAN, LESS_THAN, and RANGE are inclusive of the values provided. For example, a LESS_THAN filter with a value of 2023 includes partitions up to and including 2023.
• Partition deletion: If an existing destination partition satisfies the partition filter and is no longer present at the source, then it is dropped from the destination metastore. However, the underlying data files for that partition aren't deleted from the Cloud Storage destination bucket.
• Single table restrictions:
  • Multiple filters on the same table aren't allowed.
  • You can't mix different condition types (for example: GREATER_THAN and IN) on the same table.
• Target partition column: Filter conditions like GREATER_THAN, LESS_THAN, and RANGE must target the primary partition column.
• Prefix limitations: The specified filter combination must not resolve to more than 1000 prefixes per table. For example, a filter like year>2020 on a table partitioned by year/month/day must result in fewer than 1000 unique year= prefixes.

Before you begin

Before you schedule Hive Metastore transfer, perform the steps in this section.

Enable APIs

Enable the following APIs in your Cloud de Confiance project:

• Data Transfer API
• Storage Transfer API

A service agent is created when you enable the Data Transfer API.

Configure permissions

To configure permissions for a Hive Metastore transfer, do the following:

1. The user or the service account creating the transfer should be granted the BigQuery Admin role (roles/bigquery.admin). If you use a service account, it's only used to create the transfer.

2. A service agent (P4SA) is created upon enabling the Data Transfer API.

   To ensure that the service agent has the necessary permissions to run a Hive Metastore transfer, ask your administrator to grant the following IAM roles to the service agent on the project:

   • Storage Transfer Admin (roles/storagetransfer.admin)
   • Service Usage Consumer (roles/serviceusage.serviceUsageConsumer)
   • Storage Admin (roles/storage.admin)
   • To migrate metadata to BigLake metastore Iceberg REST Catalog : BigLake Admin (roles/biglake.admin)
   • To migrate metadata to Dataproc Metastore: Dataproc Metastore Data Owner (roles/metastore.metadataOwner)

   For more information about granting roles, see Manage access to projects, folders, and organizations.

   Your administrator might also be able to give the service agent the required permissions through custom roles or other predefined roles.

3. If you are using a service account, grant the service agent the roles/iam.serviceAccountTokenCreator role with the following command:

   gcloud iam service-accounts add-iam-policy-binding
   SERVICE_ACCOUNT --member
   serviceAccount:service-PROJECT_NUMBER@gcp-sa-bigquerydatatransfer.s3ns-system.iam.gserviceaccount.com --role
   roles/iam.serviceAccountTokenCreator

4. Grant the Storage Transfer Service service agent (project-PROJECT_NUMBER@storage-transfer-service.s3ns-system.iam.gserviceaccount.com) the following roles in the project:

   • roles/storage.admin
   • If you are migrating from on-prem/HDFS, you must also grant the roles/storagetransfer.serviceAgent role.

   You can also configure more granular permissions. For more information, see the following guide:

   • HDFS permissions
   • Amazon S3 and Microsoft Azure permissions

Generate metadata file for Apache Hive

Run the dwh-migration-dumper tool to extract metadata for Apache Hive. The tool generates a file named hive-dumper-output.zip which can be uploaded to a Cloud Storage bucket. This Cloud Storage bucket is referred to in this document as DUMPER_BUCKET.

You can also schedule periodic uploads using a script. For more information, see Automate dumper tool execution with a cron job.

Configure Storage Transfer Service

Select one of the following options:

Schedule a Hive Metastore transfer

Select one of the following options:

  bq mk --transfer_config
  --data_source=hadoop display_name='TRANSFER_NAME'
  --service_account_name='SERVICE_ACCOUNT'
  --project_id='PROJECT_ID' location='REGION'
  --params='{
    "transfer_strategy":"TRANSFER_STRATEGY",
    "table_name_patterns":"LIST_OF_TABLES",
    "table_metadata_path":"gs://DUMPER_BUCKET/hive-dumper-output.zip",
    "target_gcs_file_path":"gs://MIGRATION_BUCKET",
    "metastore":"METASTORE",
    "destination_dataproc_metastore":"DATAPROC_METASTORE_URL",
    "destination_bigquery_dataset":"BIGLAKE_METASTORE_DATASET",
    "translation_output_gcs_path":"gs://TRANSLATION_OUTPUT_BUCKET/metadata/config/default_database/",
    "storage_type":"STORAGE_TYPE",
    "agent_pool_name":"AGENT_POOL_NAME",
    "aws_access_key_id":"AWS_ACCESS_KEY_ID",
    "aws_secret_access_key":"AWS_SECRET_ACCESS_KEY",
    "azure_sas_token":"AZURE_SAS_TOKEN",
    "partition_filter_gcs_path":"FILTER_GCS_PATH"
    }'

Automate dumper tool execution with a cron job

You can automate incremental transfers by using a cron job to execute the dwh-migration-dumper tool. Automating the metadata extraction to ensure that an up-to-date dump from the data source is available for subsequent incremental transfer runs.

Before you begin

Before using this automation script, you must do the following:

1. Complete all prerequisites for the dumper tool.

2. Install the Google Cloud CLI. The script uses the gsutil command-line tool to upload dumper output to Cloud Storage.

3. To authenticate with Cloud de Confiance to allow gsutil to upload files to Cloud Storage, run the following command:

   gcloud auth application-default login

Scheduling the automation

1. Save the following script to a local file. This script is designed to be configured and executed by a cron daemon to automate the extraction and upload process of dumper output.

   #!/bin/bash

   # Exit immediately if a command exits with a non-zero status.
   set -e
   # Treat unset variables as an error when substituting.
   set -u
   # Pipelines return the exit status of the last command to exit with a non-zero status.
   set -o pipefail

   # These values are used if not overridden by command-line options.
   DUMPER_EXECUTABLE="DUMPER_PATH/dwh-migration-dumper"
   GCS_BASE_PATH="gs://PATH_TO_DUMPER_OUTPUT"
   LOCAL_BASE_DIR="LOCAL_BASE_DIRECTORY_PATH"

   # Optional arguments for cloud environments
   DUMPER_HOST=""
   DUMPER_PORT=""
   HIVE_KERBEROS_URL=""
   HIVEQL_RPC_PROTECTION=""
   KERBEROS_AUTHENTICATION="false"

   # Function to display usage information
   usage() {
     echo "Usage: $0 [options]"
     echo ""
     echo "Runs the dwh-migration-dumper tool and uploads its output to provided Cloud Storage path."
     echo ""
     echo "Required Options:"
     echo "  --dumper-executable   The full path to the dumper executable."
     echo "  --gcs-base-path       The base Cloud Storage folder to upload dumper output files to. The script generates timestamped ZIP files in this folder."
     echo "  --local-base-dir      The local base directory for logs and temp files."
     echo ""
     echo "Optional Hive connection options:"
     echo "  --host              The hostname for the dumper connection."
     echo "  --port              The port number for the dumper connection."
     echo ""
     echo "To use Kerberos authentication, include the following options."
     echo "If --kerberos-authentication is specified, then --host, --port,"
     echo "--hive-kerberos-url and --hiveql-rpc-protection are all required:"
     echo ""
     echo "  --kerberos-authentication   Enable Kerberos authentication."
     echo "  --hive-kerberos-url    The Hive Kerberos URL."
     echo "  --hiveql-rpc-protection "
     echo "                            The hiveql-rpc-protection level, equal to the value of"
     echo "                            'hadoop.rpc.protection' in '/etc/hadoop/conf/core-site.xml',"
     echo "                            with one of the following values:"
     echo "                            - authentication"
     echo "                            - integrity"
     echo "                            - privacy"
     echo ""
     echo "Other Options:"
     echo "  -h, --help                  Display this help message and exit."
     exit 1
   }

   # This loop processes command-line options and overrides the default configuration.
   while [[ "$#" -gt 0 ]]; do
     case $1 in
         --dumper-executable)
             DUMPER_EXECUTABLE="$2"
             shift # past argument
             shift # past value
             ;;
         --gcs-base-path)
             GCS_BASE_PATH="$2"
             shift
             shift
             ;;
         --local-base-dir)
             LOCAL_BASE_DIR="$2"
             shift
             shift
             ;;
         --host)
             DUMPER_HOST="$2"
             shift
             shift
             ;;
         --port)
             DUMPER_PORT="$2"
             shift
             shift
             ;;
         --hive-kerberos-url)
             HIVE_KERBEROS_URL="$2"
             shift
             shift
             ;;
         --hiveql-rpc-protection)
             HIVEQL_RPC_PROTECTION="$2"
             shift
             shift
             ;;
         --kerberos-authentication)
             KERBEROS_AUTHENTICATION="true"
             shift
             ;;
         -h|--help)
             usage
             ;;
         *)
             echo "Unknown option: $1"
             usage
             ;;
     esac
   done

   # This runs AFTER parsing arguments to ensure no placeholder values are left.
   if [[ "$DUMPER_EXECUTABLE" == "DUMPER_PATH"* || "$GCS_BASE_PATH" == "gs://PATH_TO_DUMPER_OUTPUT" || "$LOCAL_BASE_DIR" == "LOCAL_BASE_DIRECTORY_PATH" ]]; then
     echo "ERROR: One or more configuration variables have not been set. Please provide them as command-line arguments or edit the script." >&2
     echo "Run with --help for more information." >&2
     exit 1
   fi

   # If Kerberos authentication is enabled, check for required fields.
   if [[ "$KERBEROS_AUTHENTICATION" == "true" ]]; then
     if [[ -z "$DUMPER_HOST" || -z "$DUMPER_PORT" || -z "$HIVE_KERBEROS_URL" || -z "$HIVEQL_RPC_PROTECTION" ]]; then
         echo "ERROR: If --kerberos-authentication is enabled, --host, --port, --hive-kerberos-url and --hiveql-rpc-protection must be provided." >&2
         echo "Run with --help for more information." >&2
         exit 1
     fi
   fi

   # Remove trailing slashes from GCS_BASE_PATH, if any.
   GCS_BASE_PATH=$(echo "${GCS_BASE_PATH}" | sed 's:/*$::')

   # Create unique timestamp and directories for this run
   EPOCH=$(date +%s)
   LOCAL_LOG_DIR="${LOCAL_BASE_DIR}/logs"
   mkdir -p "${LOCAL_LOG_DIR}" # Ensures the base and logs directories exist

   # Define the unique log and zip file path for this run
   LOG_FILE="${LOCAL_LOG_DIR}/dumper_execution_${EPOCH}.log"
   ZIP_FILE_NAME="dts-cron-dumper-output_${EPOCH}.zip"
   LOCAL_ZIP_PATH="${LOCAL_BASE_DIR}/${ZIP_FILE_NAME}"

   echo "Script execution started. All subsequent output will be logged to: ${LOG_FILE}"

   # --- Helper Functions ---

   log() { echo "$(date '+%Y-%m-%d %H:%M:%S') - $@" >> "${LOG_FILE}"; }

   cleanup() {
     local path_to_remove="$1"
     log "Cleaning up local file/directory: ${path_to_remove}..."
     rm -rf "${path_to_remove}"
   }

   # This function is called when the script exits to ensure cleanup and logging happen reliably.
   handle_exit() {
     local exit_code=$?
     # Only run the failure logic if the script is exiting with an error
     if [[ ${exit_code} -ne 0 ]]; then
         log "ERROR: Script is exiting with a failure code (${exit_code})."
         local gcs_log_path_on_failure="${GCS_BASE_PATH}/logs/$(basename "${LOG_FILE}")"
         log "Uploading log file to ${gcs_log_path_on_failure} for debugging..."
         # Attempt to upload the log file on failure, but don't let this command cause the script to exit.
         gsutil cp "${LOG_FILE}" "${gcs_log_path_on_failure}" > /dev/null 2>&1 || log "WARNING: Failed to upload log file to Cloud Storage."

     else
         # SUCCESS PATH
         log "Script finished successfully. Now cleaning up local zip file...."
         # Clean up the local zip file ONLY on success
         cleanup "${LOCAL_ZIP_PATH}"
     fi

     log "*****Script End*****"
     exit ${exit_code}
   }

   # Trap the EXIT signal to run the handle_exit function, ensuring cleanup always happens.
   trap handle_exit EXIT

   # Validates the dumper log file based on a strict set of rules.
   validate_dumper_output() {
     local log_file_to_check="$1"

     # Check for the specific success message from the dumper tool.
     if grep -q "Dumper execution: SUCCEEDED" "${log_file_to_check}"; then
         log "Validation Successful: Found 'Dumper execution: SUCCEEDED' message."
         return 0 # Success
     else
         log "ERROR: Validation failed. The 'Dumper execution: SUCCEEDED' message was not found."
         return 1 # Failure
     fi
   }

   # --- Main Script Logic ---

   log "*****Script Start*****"
   log "Dumper Executable: ${DUMPER_EXECUTABLE}"
   log "Cloud Storage Base Path: ${GCS_BASE_PATH}"
   log "Local Base Directory: ${LOCAL_BASE_DIR}"

   # Use an array to build the command safely
   dumper_command_args=(
     "--connector" "hiveql"
     "--output" "${LOCAL_ZIP_PATH}"
   )

   # Add optional arguments if they are provided
   if [[ -n "${DUMPER_HOST}" ]]; then
   dumper_command_args+=("--host" "${DUMPER_HOST}")
   log "Using Host: ${DUMPER_HOST}"
   fi
   if [[ -n "${DUMPER_PORT}" ]]; then
   dumper_command_args+=("--port" "${DUMPER_PORT}")
   log "Using Port: ${DUMPER_PORT}"
   fi
   if [[ -n "${HIVE_KERBEROS_URL}" ]]; then
   dumper_command_args+=("--hive-kerberos-url" "${HIVE_KERBEROS_URL}")
   log "Using Hive Kerberos URL: ${HIVE_KERBEROS_URL}"
   fi
   if [[ -n "${HIVEQL_RPC_PROTECTION}" ]]; then
   dumper_command_args+=("-Dhiveql.rpc.protection=${HIVEQL_RPC_PROTECTION}")
   log "Using HiveQL RPC Protection: ${HIVEQL_RPC_PROTECTION}"
   fi

   log "Starting dumper tool execution..."
   log "COMMAND: JAVA_OPTS=\"-Djavax.security.auth.useSubjectCredsOnly=false\" ${DUMPER_EXECUTABLE} ${dumper_command_args[*]}"

   JAVA_OPTS="-Djavax.security.auth.useSubjectCredsOnly=false" "${DUMPER_EXECUTABLE}" "${dumper_command_args[@]}" >> "${LOG_FILE}" 2>&1

   log "Dumper process finished."

   # Validate the output from the dumper execution for success or failure.
   validate_dumper_output "${LOG_FILE}"

   # Upload the ZIP file to Cloud Storage
   gcs_zip_path="${GCS_BASE_PATH}/${ZIP_FILE_NAME}"
   log "Uploading ${LOCAL_ZIP_PATH} to ${gcs_zip_path}..."

   if [ ! -f "${LOCAL_ZIP_PATH}" ]; then
     log "ERROR: Expected ZIP file ${LOCAL_ZIP_PATH} not found after dumper execution."
     # The script will exit here with an error code, and the trap will run.
     exit 1
   fi

   gsutil cp "${LOCAL_ZIP_PATH}" "${gcs_zip_path}" >> "${LOG_FILE}" 2>&1
   log "Upload to Cloud Storage successful."

   # The script will now exit with code 0. The trap will call cleanup and log the script end.

2. To make the script executable, run the following command:

   chmod +x PATH_TO_SCRIPT

3. Schedule the script using crontab, replacing the variables with appropriate values for your job. Add an entry to schedule the job. The following examples run the script every day at 2:30 AM:

   If you are running on a host that has direct access to Hive Metastore and doesn't require Kerberos authentication, run the following command:

   # Run the Hive dumper daily at 2:30 AM for incremental BigQuery transfer.
   30 2 * * * PATH_TO_SCRIPT \
     --dumper-executable PATH_TO_DUMPER_EXECUTABLE \
     --gcs-base-path GCS_PATH_TO_UPLOAD_DUMPER_OUTPUT \
     --local-base-dir LOCAL_PATH_TO_SAVE_INTERMEDIARY_FILES

   If your Hive Metastore instance requires Kerberos authentication, run the following command:

   # Run the Hive dumper daily at 2:30 AM for incremental BigQuery transfer with Kerberos authentication.
   30 2 * * * PATH_TO_SCRIPT \
     --dumper-executable PATH_TO_DUMPER_EXECUTABLE \
     --gcs-base-path GCS_PATH_TO_UPLOAD_DUMPER_OUTPUT \
     --local-base-dir LOCAL_PATH_TO_SAVE_INTERMEDIARY_FILES \
     --kerberos-authentication \
     --host HIVE_HOST \
     --port HIVE_PORT \
     --hive-kerberos-url HIVE_KERBEROS_URL \
     --hiveql-rpc-protection HIVEQL_RPC_PROTECTION

Scheduling considerations

To avoid data staleness, run the dumper tool before your scheduled data transfer.

We recommend performing a few trial runs of the script manually to determine the average time it takes for the dumper tool to generate its output. Use this timing to set a cron job schedule that precedes your transfer run to ensure data freshness.

Monitor and view transfer status

You can monitor resource-level transfers for individual tables to track progress, view granular error details, and query the state of specific resources being migrated.

To view the progress and status of your resources, select one of the following options:

  GET https://bigquerydatatransfer.googleapis.com/v1/projects/PROJECT_ID/locations/LOCATION/transferConfigs/CONFIG_ID/transferResources
  Example Response (abridged) (JSON):
  {
    "transferResources": [
      {
        "name": "projects/.../transferResources/table1",
        "latestStatusDetail": {
          "state": "RESOURCE_TRANSFER_SUCCEEDED",
          "completedPercentage": 100.0
        },
        "updateTime": "2026-02-03T22:42:06Z"
      }
    ]
  }


  curl -X GET

  "https://bigquerydatatransfer.googleapis.com/v1/projects/PROJECT_ID/locations/LOCATION/transferConfigs/CONFIG_ID/transferResources"

  -H "Authorization: Bearer $(gcloud auth print-access-token)"

  -H "Accept: application/json"


  GET https://bigquerydatatransfer.googleapis.com/v1/projects/PROJECT_ID/locations/LOCATION/transferConfigs/CONFIG_ID/transferResources/RESOURCE_ID


  curl -X GET

  "https://bigquerydatatransfer.googleapis.com/v1/projects/PROJECT_ID/locations/LOCATION/transferConfigs/CONFIG_ID/transferResources/RESOURCE_ID"

  -H "Authorization: Bearer $(gcloud auth print-access-token)"

  -H "Accept: application/json"


Quotas and concurrency limits

For every BigQuery Data Transfer Service run, the Hive Metastore connector runs one Storage Transfer Service job per table.

Once the quota is reached, the transfer waits until more quota is available. Storage Transfer Service jobs are created in the customer project and are subject to Storage Transfer Service quotas and limits.

Pricing

There is no cost to use the Apache Hive Metastore connector to transfer your data. After the data is transferred, you're charged with storing the data in your destination. For more information, see the following:

• BigLake
• Dataproc Metastore pricing
• Cloud Storage pricing
