Apache Iceberg managed tables

Apache Iceberg managed tables (formerly BigLake tables for Apache Iceberg in BigQuery) provide the foundation for building open-format lakehouses on Cloud de Confiance by S3NS. Iceberg managed tables offer the same fully managed experience as standard BigQuery tables, but store data in customer-owned storage buckets. Iceberg managed tables support the open Iceberg table format for better interoperability with open-source and third-party compute engines on a single copy of data.

Iceberg managed tables support the following features:

• Table mutations using GoogleSQL data manipulation language (DML).
• Unified batch and high throughput streaming using the BigQuery Storage Write API through connectors like Spark, Dataflow, and other engines.
• Export of Iceberg V2 snapshot and automatic refresh on each table mutation for direct query access with open-source and third-party query engines, such as Spark.
• Schema evolution, which lets you add, drop, and rename columns to suit your needs. This feature also lets you change an existing column's data type and mode. For more information, see Conversion rules.
• Automatic storage optimization, including adaptive file sizing, automatic clustering, garbage collection, and metadata optimization.
• Time travel for historical data access in BigQuery.
• Column-level security and data masking.
• Multi-statement transactions (in Preview).
• Table partitioning (in Preview).
• Table creation in Dataform workflows.

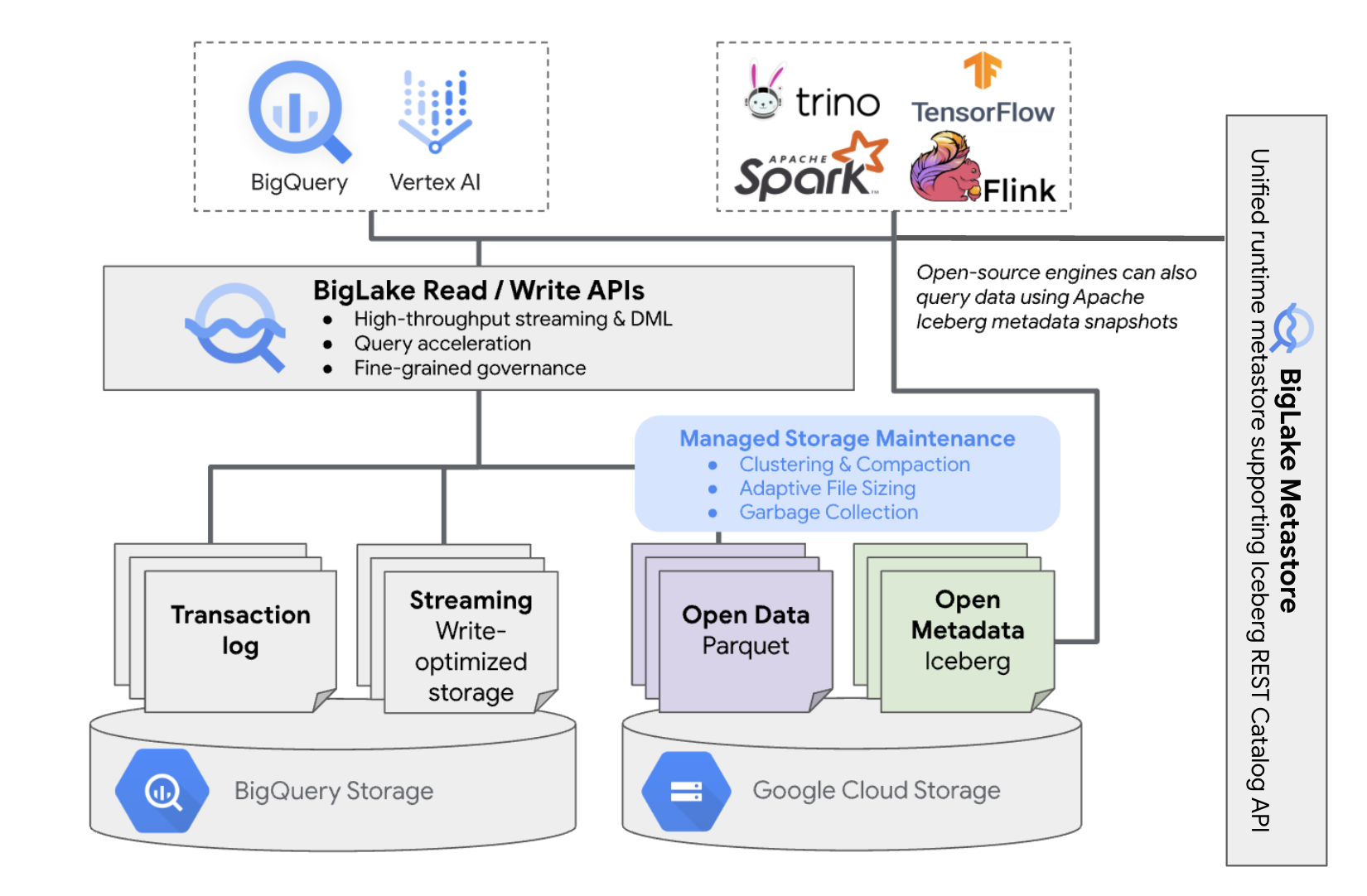

Architecture

Iceberg managed tables bring the convenience of BigQuery resource management to tables that reside in your own cloud buckets. You can use BigQuery and open-source compute engines on these tables without moving the data out of the buckets that you control. You must configure a Cloud Storage bucket before you start using Iceberg managed tables.

Using Iceberg managed tables has the following implications on your bucket:

• BigQuery creates new data files in the bucket in response to write requests and background storage optimizations, such as DML statements and streaming.
• Automatic compaction and clustering are performed on the data files in the bucket. After the expiration of the time travel window, data files are garbage collected. However, if the table is deleted, the associated data files aren't garbage collected. For more information, see Storage optimization.

Creating an Iceberg managed table is similar to creating BigQuery tables. Because it stores data in open formats on Cloud Storage, you must do the following:

• Specify the Cloud resource connection with WITH CONNECTION to configure the connection credentials for BigQuery to access Cloud Storage.
• Specify the file format of data storage as PARQUET with the file_format = PARQUET statement.
• Specify the open-source metadata table format as ICEBERG with the table_format = ICEBERG statement.

Best practices

Directly changing or adding files to the bucket outside of BigQuery can lead to data loss or unrecoverable errors. The following table describes possible scenarios:

Cloud Storage bucket configuration best practices

The configuration of your Cloud Storage bucket and its connection with BigQuery have a direct impact on the performance, cost, data integrity, security, and governance of your Iceberg managed tables. The following are best practices to help with this configuration:

• Select a name that clearly indicates that the bucket is only meant for Iceberg managed tables.

• Choose single-region Cloud Storage buckets that are co-located in the same region as your BigQuery dataset. This coordination improves performance and lowers costs by avoiding data transfer charges.

• By default, Cloud Storage stores data in the Standard storage class, which provides sufficient performance. To optimize data storage costs, you can enable Autoclass to automatically manage storage class transitions. Autoclass starts with the Standard storage class and moves objects that aren't accessed to progressively colder classes in order to reduce storage costs. When the object is read again, it's moved back to the Standard class.

• Enable uniform bucket-level access and public access prevention.

• Verify that the required roles are assigned to the correct users and service accounts.

• To prevent accidental data deletion or corruption in your Cloud Storage bucket, restrict write and delete permissions for most users in your organization. You can do this by setting a bucket permission policy with conditions that deny PUT and DELETE requests for all users, except those that you specify.

• Apply google-managed or customer-managed encryption keys for extra protection of sensitive data.

• Enable audit logging for operational transparency, troubleshooting, and monitoring data access.

• Keep the default soft delete policy (7 day retention) to protect against accidental deletions. However, if you find that data has been deleted, engage with support rather than restoring objects manually, as objects that are added or modified outside of BigQuery aren't tracked by BigQuery metadata.

• Adaptive file sizing, automatic clustering, and garbage collection are enabled automatically and help with optimizing file performance and cost.

• Avoid the following Cloud Storage features, as they are unsupported for Iceberg managed tables:

  • Hierarchical namespaces
  • Object access control lists (ACLs)
  • Customer-supplied encryption keys
  • Object versioning
  • Object lock
  • Bucket lock
  • Restoring soft-deleted objects with the BigQuery API or bq CLI

You can implement these best practices by creating your bucket with the following command:

gcloud storage buckets create gs://BUCKET_NAME \
    --project=PROJECT_ID \
    --location=LOCATION \
    --enable-autoclass \
    --public-access-prevention \
    --uniform-bucket-level-access

Replace the following:

• BUCKET_NAME: the name for your new bucket
• PROJECT_ID: the ID of your project
• LOCATION: the location for your new bucket

Iceberg managed table workflows

The following sections describe how to create, load, manage, and query Iceberg managed tables.

Before you begin

Before creating and using Iceberg managed tables, ensure that you have set up a Cloud resource connection to a storage bucket. Your connection needs write permissions on the storage bucket, as specified in the following Required roles section. For more information about required roles and permissions for connections, see Manage connections.

Required roles

To get the permissions that you need to let BigQuery manage tables in your project, ask your administrator to grant you the following IAM roles:

• To create Iceberg managed tables:
  • BigQuery Data Owner (roles/bigquery.dataOwner) on your project
  • BigQuery Connection Admin (roles/bigquery.connectionAdmin) on your project
• To query Iceberg managed tables:
  • BigQuery Data Viewer (roles/bigquery.dataViewer) on your project
  • BigQuery User (roles/bigquery.user) on your project
• Grant the connection service account the following roles so it can read and write data in Cloud Storage:
  • Storage Object User (roles/storage.objectUser) on the bucket
  • Storage Legacy Bucket Reader (roles/storage.legacyBucketReader) on the bucket

For more information about granting roles, see Manage access to projects, folders, and organizations.

These predefined roles contain the permissions required to let BigQuery manage tables in your project. To see the exact permissions that are required, expand the Required permissions section:

You might also be able to get these permissions with custom roles or other predefined roles.

Create Iceberg managed tables

To create an Iceberg managed table, select one of the following methods:

CREATE TABLE [PROJECT_ID.]DATASET_ID.TABLE_NAME (
COLUMN DATA_TYPE[, ...]
)
CLUSTER BY CLUSTER_COLUMN_LIST
WITH CONNECTION {CONNECTION_NAME | DEFAULT}
OPTIONS (
file_format = 'PARQUET',
table_format = 'ICEBERG',
storage_uri = 'STORAGE_URI');

bq --project_id=PROJECT_ID mk \
    --table \
    --file_format=PARQUET \
    --table_format=ICEBERG \
    --connection_id=CONNECTION_NAME \
    --storage_uri=STORAGE_URI \
    --schema=COLUMN_NAME:DATA_TYPE[, ...] \
    --clustering_fields=CLUSTER_COLUMN_LIST \
    DATASET_ID.MANAGED_TABLE_NAME

{
"tableReference": {
  "tableId": "TABLE_NAME"
},
"biglakeConfiguration": {
  "connectionId": "CONNECTION_NAME",
  "fileFormat": "PARQUET",
  "tableFormat": "ICEBERG",
  "storageUri": "STORAGE_URI"
},
"schema": {
  "fields": [
    {
      "name": "COLUMN_NAME",
      "type": "DATA_TYPE"
    }
    [, ...]
  ]
}
}

Import data into Iceberg managed tables

The following sections describe how to import data from various table formats into Iceberg managed tables.

Standard load data from flat files

Iceberg managed tables use BigQuery load jobs to load external files into Iceberg managed tables. If you have an existing Iceberg managed table, follow the bq load CLI guide or the LOAD SQL guide to load external data. After loading the data, new Parquet files are written into the STORAGE_URI/data folder.

If the prior instructions are used without an existing Iceberg managed table, a BigQuery table is created instead.

See the following for tool-specific examples of batch loads into Iceberg managed tables:

LOAD DATA INTO MANAGED_TABLE_NAME
FROM FILES (
uris=['STORAGE_URI'],
format='FILE_FORMAT');

bq load \
  --source_format=FILE_FORMAT \
  MANAGED_TABLE \
  STORAGE_URI

Standard load from Apache Hive-partitioned files

You can load Hive-partitioned files into Iceberg managed tables using standard BigQuery load jobs. For more information, see Loading externally partitioned data.

Load streaming data from Pub/Sub

You can load streaming data into Iceberg managed tables by using a Pub/Sub BigQuery subscription.

Export data from Iceberg managed tables

The following sections describe how to export data from Iceberg managed tables into various table formats.

Export data into flat formats

To export an Iceberg managed table into a flat format, use the EXPORT DATA statement and select a destination format. For more information, see Exporting data.

Create Iceberg managed table metadata snapshots

To create an Iceberg managed table metadata snapshot, follow these steps:

1. Export the metadata into the Iceberg V2 format with the EXPORT TABLE METADATA SQL statement.

2. Optional: Schedule Iceberg metadata snapshot refresh. To refresh an Iceberg metadata snapshot based on a set time interval, use a scheduled query.

3. Optional: Enable metadata auto-refresh for your project to automatically update your Iceberg table metadata snapshot on each table mutation. To enable metadata auto-refresh, contact bigquery-tables-for-apache-iceberg-help@google.com. EXPORT METADATA costs are applied on each refresh operation.

The following example creates a scheduled query named My Scheduled Snapshot Refresh Query using the DDL statement EXPORT TABLE METADATA FROM mydataset.test. The DDL statement runs every 24 hours.

bq query \
    --use_legacy_sql=false \
    --display_name='My Scheduled Snapshot Refresh Query' \
    --schedule='every 24 hours' \
    'EXPORT TABLE METADATA FROM mydataset.test'

View Iceberg managed table metadata snapshot

After you refresh the Iceberg managed table metadata snapshot you can find the snapshot in the Cloud Storage URI that the Iceberg managed table was originally created in. The /data folder contains the Parquet file data shards, and the /metadata folder contains the Iceberg managed table metadata snapshot.

SELECT
  table_name,
  REGEXP_EXTRACT(ddl, r"storage_uri\s*=\s*\"([^\"]+)\"") AS storage_uri
FROM
  `mydataset`.INFORMATION_SCHEMA.TABLES;

Note that mydataset and table_name are placeholders for your actual dataset and table.

Read Iceberg managed tables with Spark

The following sample sets up your environment to use Spark SQL with Spark, and then executes a query to fetch data from a specified Iceberg managed table.

spark-sql \
  --packages org.apache.iceberg:iceberg-spark-runtime-ICEBERG_VERSION_NUMBER \
  --conf spark.sql.catalog.CATALOG_NAME=org.apache.iceberg.spark.SparkCatalog \
  --conf spark.sql.catalog.CATALOG_NAME.type=hadoop \
  --conf spark.sql.catalog.CATALOG_NAME.warehouse='BUCKET_PATH' \

# Query the table
SELECT * FROM CATALOG_NAME.FOLDER_NAME;

Replace the following:

• ICEBERG_VERSION_NUMBER: the current runtime version. Download the latest version from Iceberg releases.
• CATALOG_NAME: the catalog to reference your Iceberg managed table.
• BUCKET_PATH: the path to the bucket containing the table files. For example, gs://mybucket/.
• FOLDER_NAME: the folder containing the table files. For example, myfolder.

Modify Iceberg managed tables

To modify an Iceberg managed table, follow the steps shown in Modifying table schemas.

Use multi-statement transactions

To gain access to multi-statement transactions for Iceberg managed tables, fill out the sign-up form.

Use partitioning

To gain access to partitioning for Iceberg managed tables, fill out the sign-up form.

You partition a table by specifying a partition column, which is used to segment the table. The following column types are supported for Iceberg managed tables:

• DATE
• DATETIME
• TIMESTAMP

Partitioning a table on a DATE, DATETIME, or TIMESTAMP column is known as time-unit column partitioning. You choose whether the partitions have hourly, daily, monthly, or yearly granularity.

Iceberg managed tables also support clustering and combining clustered and partitioned tables.

Partitioning limitations

• All BigQuery partitioned table limitations apply.
• Partitioning column types other than DATE, DATETIME, or TIMESTAMP aren't supported.
• Partition expiration isn't supported.
• Partition evolution isn't supported.

Create a partitioned Iceberg managed table

To create a partitioned Iceberg managed table, follow the instructions to create a standard Iceberg managed table, and include one of the following, depending on your environment:

• The PARTITION BY clause
• The --time_partitioning_field and --time_partitioning_type flags
• The timePartitioning property

Modify and query partitioned Iceberg managed tables

BigQuery data manipulation language (DML) statements and queries for partitioned Iceberg managed tables are the same as for standard Iceberg managed tables. BigQuery automatically scopes the job to the right partitions, similar to Iceberg hidden partitioning. Additionally, any new data that you add to the table is automatically partitioned.

You can also query partitioned Iceberg managed tables with other engines in the same way as standard Iceberg managed tables. We recommend enabling metadata snapshots for the best experience.

For enhanced security, partitioning information for Iceberg managed tables is decoupled from the data path and is managed entirely by the metadata layer.

Pricing

Iceberg managed table pricing consists of storage, storage optimization, and queries and jobs.

Storage

Iceberg managed tables store all data in Cloud Storage. You are charged for all data stored, including historical table data. Cloud Storage data processing and transfer charges might also apply. Some Cloud Storage operation fees might be waived for operations that are processed through BigQuery or the BigQuery Storage API. There are no BigQuery-specific storage fees. For more information, see Cloud Storage Pricing.

Storage optimization

Iceberg managed tables perform automatic table management, including compaction, clustering, garbage collection, and BigQuery metadata generation/refresh to optimize query performance and reduce storage costs. Compute resource usage for table management is billed in Data Compute Units (DCUs) over time, in per second increments. For more details, see Iceberg managed table pricing.

Data export operations taking place while streaming through the Storage Write API are included in Storage Write API pricing and are not charged as background maintenance. For more information, see Data ingestion pricing.

To view the logs and compute usage for these background operations, query the INFORMATION_SCHEMA.JOBS view. For example queries, see the following:

• Storage optimization jobs
• EXPORT TABLE METADATA jobs

Queries and jobs

Similar to BigQuery tables, you are charged for queries and bytes read (per TiB) if you are using BigQuery on-demand pricing, or slot consumption (per slot hour) if you are using BigQuery capacity compute pricing.

BigQuery pricing also applies to the BigQuery Storage Read API and the Storage Write API.

Load and export operations (such as EXPORT METADATA) use Enterprise edition pay as you go slots. This differs from BigQuery tables, which are not charged for these operations. If PIPELINE reservations with Enterprise or Enterprise Plus slots are available, load and export operations preferentially use these reservation slots instead.

Limitations

Iceberg managed tables have the following limitations:

• Iceberg managed tables don't support renaming operations or ALTER TABLE RENAME TO statements.
• Iceberg managed tables don't support table copies or CREATE TABLE COPY statements.
• Iceberg managed tables don't support table clones or CREATE TABLE CLONE statements.
• Iceberg managed tables don't support table snapshots or CREATE SNAPSHOT TABLE statements.
• Iceberg managed tables don't support the following table schema:
  • Empty schema
  • Schema with BIGNUMERIC, INTERVAL, JSON, RANGE, or GEOGRAPHY data types.
  • Schema with field collations.
  • Schema with default value expressions.
• Iceberg managed tables don't support the following schema evolution cases:
  • NUMERIC to FLOAT type coercions
  • INT to FLOAT type coercions
  • Adding new nested fields to an existing RECORD columns using SQL DDL statements
• Iceberg managed tables display a 0-byte storage size when queried by the console or APIs.
• Iceberg managed tables don't support materialized views.
• Iceberg managed tables don't support authorized views, but column-level access control is supported.
• Iceberg managed tables don't support change data capture (CDC) updates.
• Iceberg managed tables don't support managed disaster recovery
• Iceberg managed tables don't support row-level security.
• Iceberg managed tables don't support fail-safe windows.
• Iceberg managed tables don't support extract jobs.
• The INFORMATION_SCHEMA.TABLE_STORAGE view doesn't include Iceberg managed tables.
• Iceberg managed tables aren't supported as query result destinations. You can instead use the CREATE TABLE statement with the AS query_statement argument to create a table as the query result destination.
• CREATE OR REPLACE doesn't support replacing standard tables with Iceberg managed tables, or Iceberg managed tables with standard tables.
• Batch loading and LOAD DATA statements only support appending data to existing Iceberg managed tables.
• Batch loading and LOAD DATA statements don't support schema updates.
• TRUNCATE TABLE doesn't support Iceberg managed tables. There are two alternatives:
  • CREATE OR REPLACE TABLE, using the same table creation options.
  • DELETE FROM table WHERE true
• The APPENDS table-valued function (TVF) doesn't support Iceberg managed tables.
• Iceberg metadata might not contain data that was streamed to BigQuery by the Storage Write API within the last 90 minutes.
• Record-based paginated access using tabledata.list doesn't support Iceberg managed tables.
• Only one concurrent mutating DML statement (UPDATE, DELETE, and MERGE) runs for each Iceberg managed table. Additional mutating DML statements are queued.
